Ashtray

Hyundai i30. Interior features

To use the ashtray, open the cover.

To clean the ashtray:

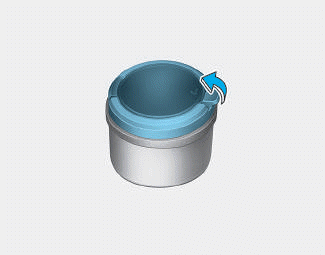

The plastic receptacle should be removed by lifting the plastic ashtray receptacle upward after turning the cover counterclockwise and pulling it out.

WARNING

Putting lit cigarettes or matches in an ashtray with other combustible materials may cause a fire.

Luggage tray, Luggage side tray

Luggage tray (wagon) ■ Type A ■ Type B You can place a first aid kit, a reflector triangle (front tray), tools, etc. in the box for easy access...

Cup holder

Front ■ Type A ■ Type B Cups or small beverages cups may be placed in the cup holders. Type B To use the cup holder, use the lip to slide open the cover towards the rear of the vehicle...
