Hyundai i-30: Interior features / Clothes hanger

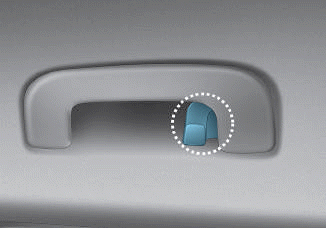

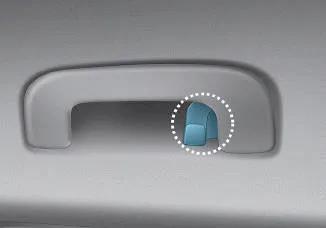

■ Type A

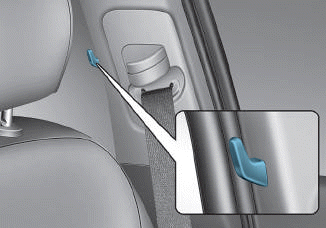

■ Type B
These hangers are not designed to hold large or heavy items.
WARNING

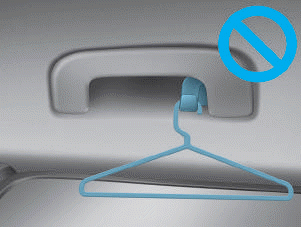

Do not hang other objects such as hangers or hard objects except clothes. Also, do not put heavy, sharp or breakable objects in the clothes pockets. In an accident or when the curtain air bag is inflated, it may cause vehicle damage or personal injury.
Clock
WARNING
Do not adjust the clock whilst
driving.You may lose your steering
control and cause severe
personal injury or accidents.
Vehicles with Audio system
Select the [SETUP/CLOCK ] button on
the audio system ➟ Select [Date/Time]...
Floor mat anchor(s)
ALWAYS use the Floor Mat Anchors
to attach the front floor mats to the
vehicle. The anchors on the front
floor carpet keep the floor mats from
sliding forward...
Other information:
Hyundai i30 (PD) 2018-2025 Service Manual: Instrument Cluster
Components and components location Components TFT LCD Cluster (Standard) TFT LCD Cluster (7Inch) Connector Pin Information Connector Pin Information No. Description No. Description 1 Ground 21 Trip switch (-) 2 Illumination (-) 22 Trip switch 1 (+) 3 Rheostat switch (Down)_Input 23 Trip switch 2 (+) 4 Rheostat switch (Up)_Input 24 M/T N switch 5 Dentent 25 Driver mode switch 6 P 26 - 7 R 27 - 8 N 28 Low washer level sensor 9 D 29 M-CAN (Low) 10 S 30 M-CAN (High) 11 Immobillizer 31 - 12 Vehicle speed_Output 32 C-CAN (High) 13 Alternator_Input 33 C-CAN(Low) 14 Fuel sender (+)_Input 34 - 15 - 35 - 16 Fuel sender (-)_Input 36 - 17 Water separator (+) 37 Ground 18 Airbag (+)_Input 38 - 19 Oil press switch (-)_Input 39 IGN 1 20 Tail_input 40 Battery (+) Schematic diagrams Circuit Diagram TFT LCD Cluster (Standard) TFT LCD Cluster (7Inch) Description and operation Description Communication Network Diagram Abbreviation Expalnation ECM Engine Control Module TCU Transmission Control Unit MDPS Motor Driven Power Steering AEB Autonomous Emergency Braking LKAS Lane Keeping Assist System FPS Fuel Pump Control module RR CAMERA Rear View Carmera VACUUM Vacuum Pump CLUSTER Cluster Module ACU Airbag Control Unit DATC Dual Automatic Temp Control MTC Temp Control OCS Occupant Classification System VDC Vehicle Dynamic Control BSD Blind Spot Detection AMP Amplifier AVN Head Unit (Audio / AVN) SMK Smart Key Unit WPC Wireless Power Charger IMS Integrated Memory System DDM Driver Door Module ADM Assist Door Module BCM Body Control Module B-CAN Body Controller Area Network P-CAN Powertrain Controller Area Network M-CAN Multi media Controller Area Network C-CAN Chassis Controller Area Network Cluster Variant Coding As we have more options (ESC, MDPS etc...
