Hyundai i30. Temperature control

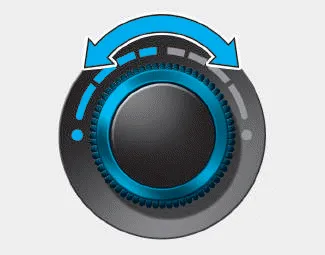

The temperature will increase by turning the knob to the right. The temperature will decrease by turning the knob to the left.

Adjusting the driver and passenger side temperature equally

Hyundai i30. Temperature control

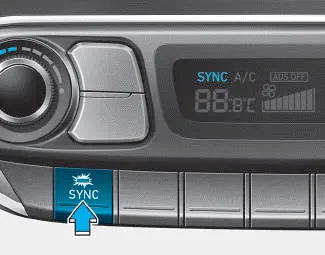

  • Press the “SYNC” button to adjust the driver and passenger side temperature equally. The passenger side temperature will be set to the same temperature as the driver side temperature.
  • Turn the driver side temperature control knob. The driver and passenger side temperature will be adjusted equally.

Adjusting the driver and passenger side temperature individually

Press the “SYNC” button again to adjust the driver and passenger side temperature individually. The button indicator will turn off.

Temperature conversion

If the battery has been discharged or disconnected, the temperature mode display will reset to Centigrade.

To change the temperature unit from °C to °F or °F to °C :

- Automatic climate control system
Press the AUTO button for 3 seconds whilst pressing the OFF button.
- Instrument cluster
Go to User Settings Mode → Other Features →Temperature Unit.

    Mode selection

    The mode selection button controls the direction of the air flow through the ventilation system. Defrost-Level (A, D) Most of the air flow is directed to the windscreen...

    Air intake control

    This is used to select the outside (fresh) air position or recirculated air position. To change the air intake control position, push the control button...
