Hyundai i-30: Mirrors / Reverse parking aid function
When you move the shift lever to the R (Reverse) position, the outside rearview mirror(s) will rotate downwards to aid with driving in reverse.

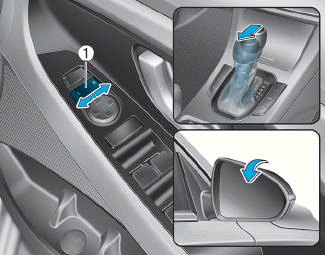

The position of the outside rearview mirror switch (1) determines whether or not the mirrors will move:
Left/Right : When either the L (Left) or R (Right) switch is selected, both outside rearview mirrors will move.
Neutral : When neither switch is selected, the outside rearview mirrors will not move.
The outside rearview mirrors will automatically revert to their original positions if any of the following occur:
- The ignition switch is placed to either the LOCK/OFF position or the ACC position.
- The shift lever is moved to any position except R (Reverse).
- The outside rearview mirror switch is not selected.
