Hyundai i-30: AVN System / AVN Remote Controller

Hyundai i30 (PD) 2018-2024 Service Manual / Body Electrical System / AVN System / AVN Remote Controller

Components and components location

Components

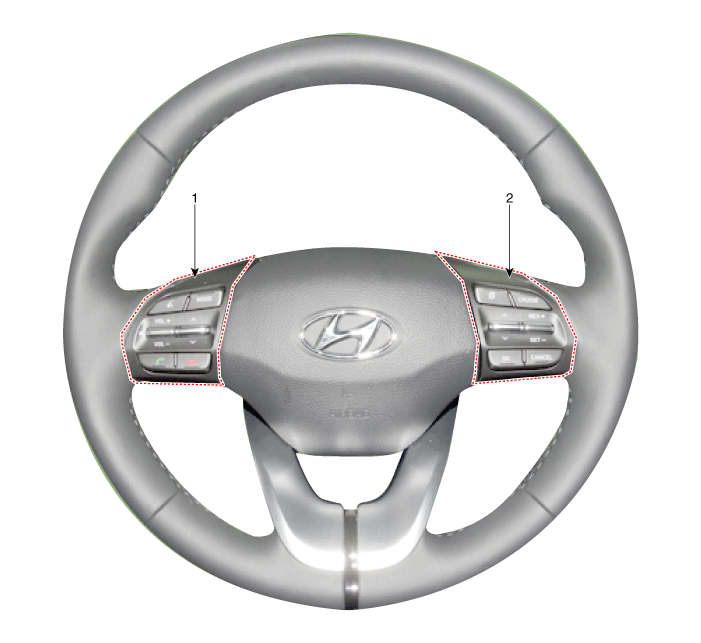

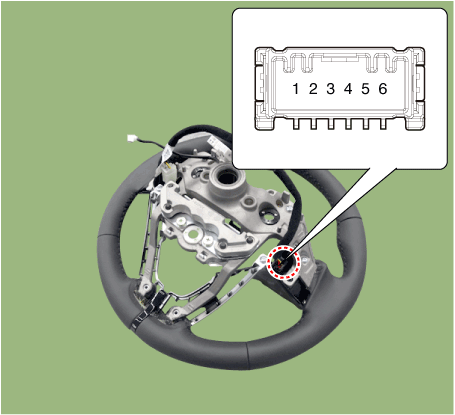

1. Left Remote Control Switch (Audio + Hands free)

2. Right Remote Control Switch
(Cruise+Trip Computer+ Smart Cruise)

Schematic diagrams

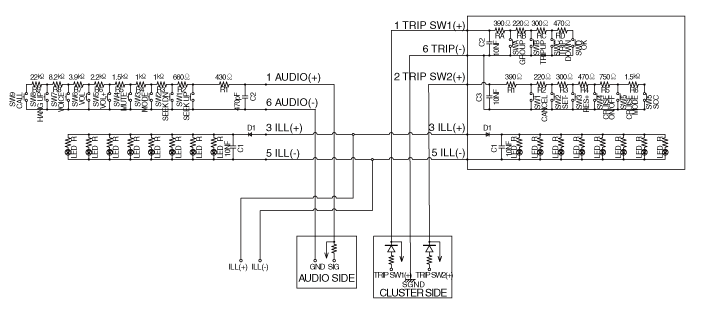

Circuit Diagram

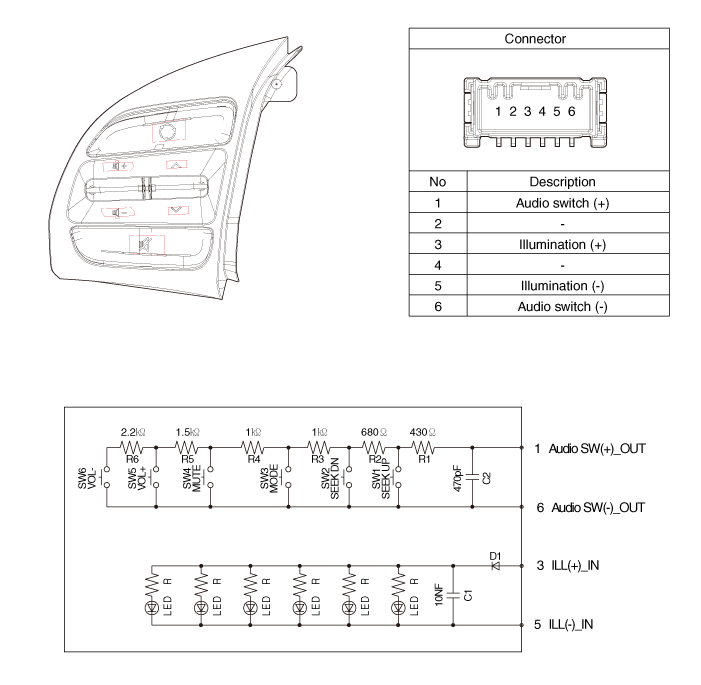

[Audio]

[Audio + Bluetooth]

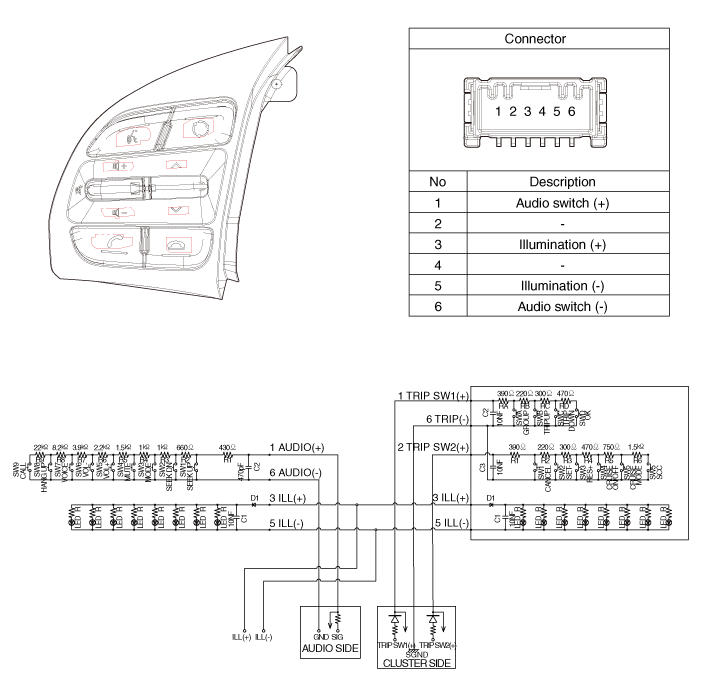

[Audio + Bluetooth + Voice]

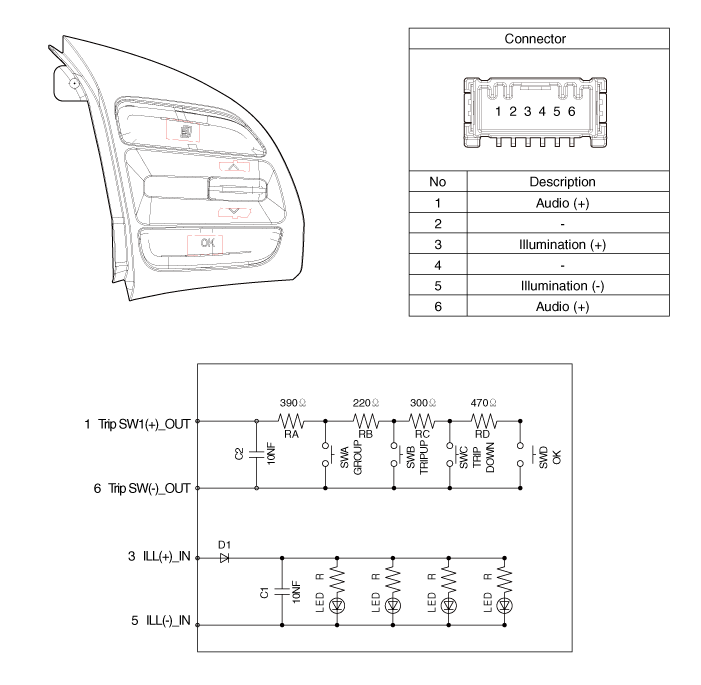

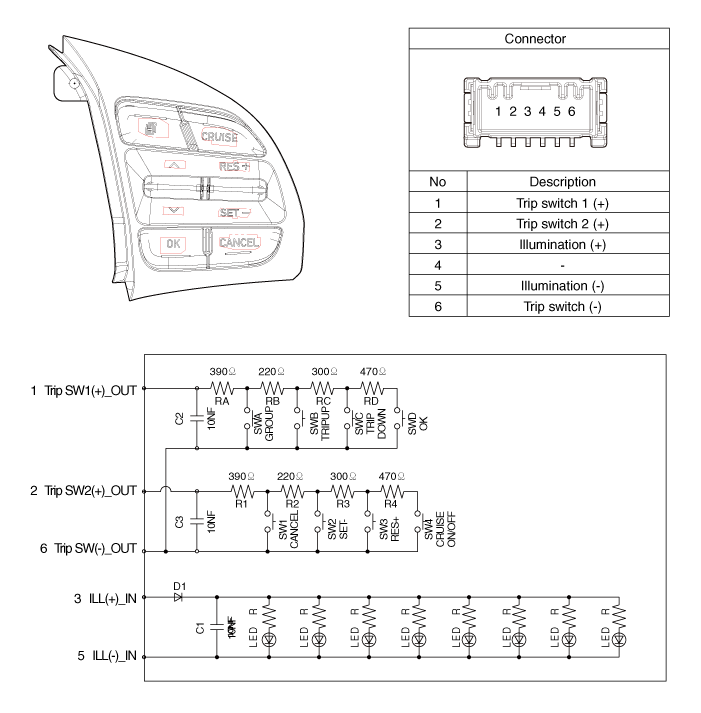

[Trip + Cruise]

Repair procedures

Inspection

Check for resistance between terminals in each switch position (LH).

[LH : Audio + Hands free]

Switch	Connector terminal	Resistance (±5%)
SEEK Up	1 - 6	430 Ω
SEEK Down		1.11 kΩ
MODE		2.11 kΩ
MUTE		3.11 kΩ
Volume (+)		4.61 kΩ
Volume (-)		6.81 kΩ
Voice		10.71 kΩ
END		18.91 kΩ
SEND		40.91 kΩ

Check for resistance between terminals in each switch position (RH).

[RH : Trip + Cruise]

Switch	Connector terminal	Resistance (±5%)
Cancel	2 - 6	390 Ω
SET (-)	2 - 6	610 Ω
RES (+)	2 - 6	910 Ω
Cruise ON/OFF	2 - 6	1.38 Ω
Group	1 - 6	390 Ω
Trip up	1 - 6	610 Ω
Trip down	1 - 6	910 Ω
ENTER	1 - 6	1.38 Ω
SCC ON/OFF	2 - 6	3.63 Ω

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the steering wheel assembly. (Refer to Steering System - "Steering Wheel")

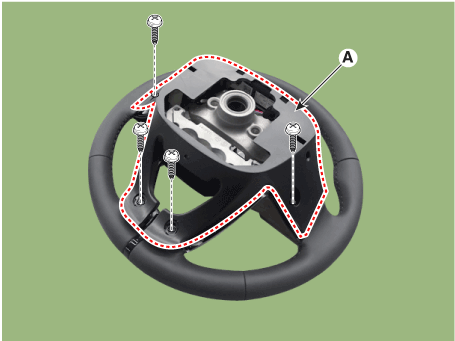

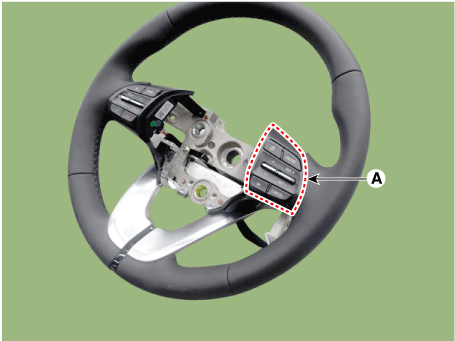

3.	Remove the screws from the steering back cover (A).

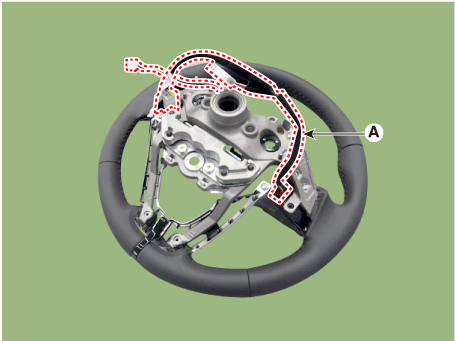

4.	Remove the steering remote control connector (A).

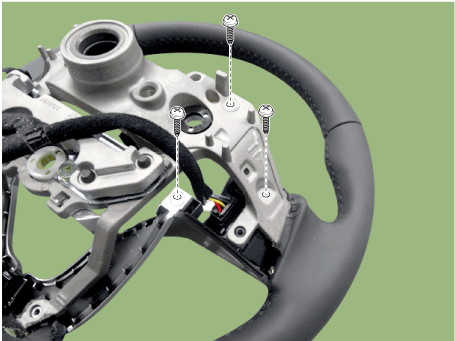

5.	Remove the steering remote control (A) after loosening the screws.

Installation

1.	Install the steering wheel remote controll and cover after connecting the connector.

2.	Install the steering wheel and driver airbag module.

3.	Connect the negative (-) battery terminal.
