Hyundai i-30: Body Side Molding / Rear Mud Guard
Repair procedures
•
|
Put on gloves to prevent hand injuries.
|
|
•
|
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components.
|
•
|
Take care not to scratch the body surface.
|
|
1. |

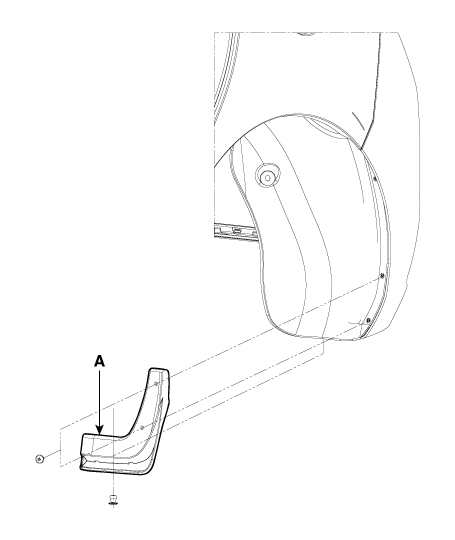

After loosening the mounting clip and screws, remove the rear mud guard
(A).

|
2. |
To install, reverse removal procedure.
• |
Replace any damaged clips (or pin-type retainers).
|
|
|
