Hyundai i-30: Body Side Molding / Front Wheel Guard

Hyundai i30 (PD) 2018-2025 Service Manual / Body (Interior and Exterior) / Body Side Molding / Front Wheel Guard

Repair procedures
Replacement

Put on gloves to prevent hand injuries.

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.
1.
Remove the front tire.
2.

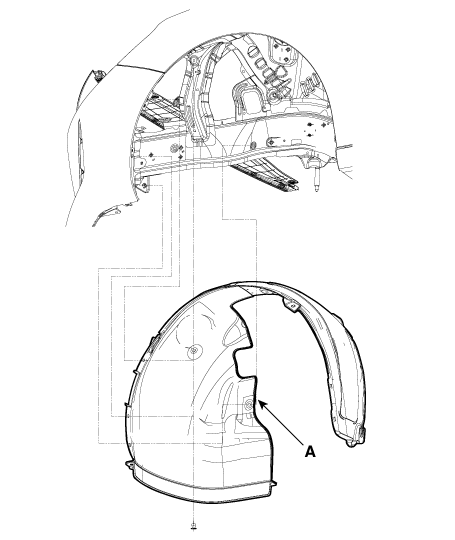

After loosening the mounting clips and screws, remove the front wheel guard (A).

3.
To install, reverse removal procedure.

Replace any damaged clips (or pin-type retainers).
