Hyundai i-30: Front Door / Front Door Side Weatherstrip

Hyundai i30 (PD) 2018-2025 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Side Weatherstrip

Repair procedures
Replacement
[Front door side weatherstrip]
1.

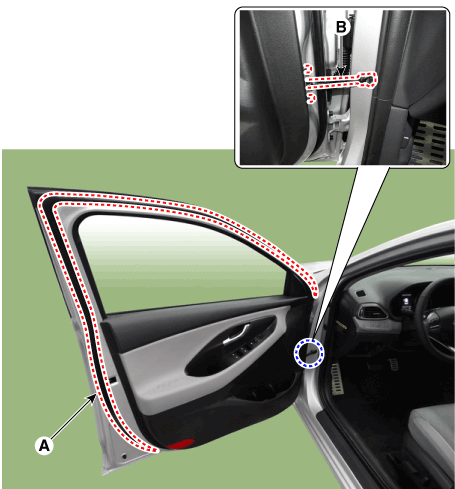

Loosen the front door checker (B) mounting bolt.
Tightening torque :
21.6 - 32.4 N.m (2.2 - 3.3 kgf.m,15.9 - 23.9 lb-ft)
2.
Detach the clips, then remove the front door side weatherstrip (A).

3.
To install, reverse removal procedure.

Replace any damaged clips (or pin-type retainers).
[Front door body side weatherstrip]
1.

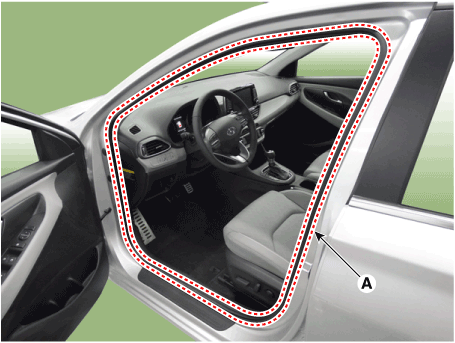

Detach the clips, then remove the front door body side weatherstrip (A).

2.
To install, reverse the removal procedure.
