Checking the parking brake

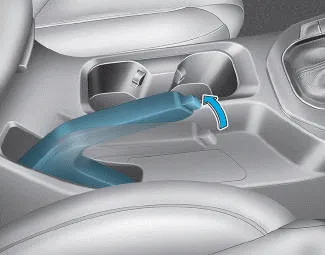

Hyundai i30. Parking brake

Check the stroke of the parking brake by counting the number of “clicks’’ heard whilst fully applying it from the released position. Also, the parking brake alone should securely hold the vehicle on a fairly steep grade. If the stroke is more or less than specified, we recommend that the system be serviced by a HYUNDAI authorised repairer.

Stroke : 5~6 “clicks’’ at a force of 20 kg (44 lbs, 196 N).
