Hyundai i-30: Maintenance / Washer fluid
Checking the washer fluid
level

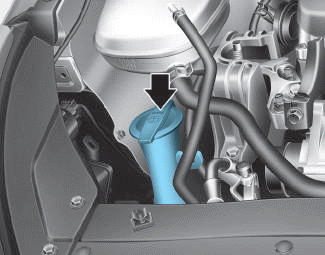

Check the fluid level in the washer
fluid reservoir and add fluid if necessary.
Plain water may be used if
washer fluid is not available.
However, use washer solvent with
antifreeze characteristics in cold climates
to prevent freezing.
WARNING
To prevent serious injury or
death, take the following safety
precautions when using washer
fluid:
- Do not use engine coolant or
antifreeze in the washer fluid
reservoir. Engine coolant can
severely obscure visibility
when sprayed on the windscreen
and may cause loss of
vehicle control resulting in an
accident or damage to paint
and body trim.
- Do not allow sparks or flames
to contact the washer fluid or
the washer fluid reservoir.
Washer fluid may contain
alcohol and can be flammable.
- Do not drink washer fluid and
avoid contact with skin.
Washer fluid is poisonous to
humans and animals.
- Keep washer fluid away from
children and animals.
