Hyundai i-30: Front Door / Front Door Inside Handle

Hyundai i30 (PD) 2018-2025 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Inside Handle

Repair procedures

Replacement

1.	Remove the front door trim. (Refer to Front Door - "Front Door Trim")

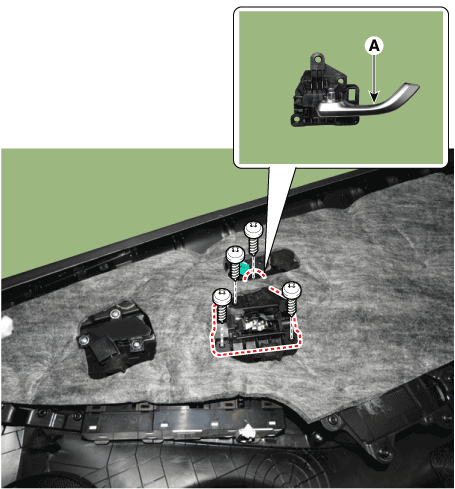

2.	After loosening the mounting screws, remove the front door inside handle (A).

To install, reverse removal procedure.

•	Make sure the door locks / unlocks and opens / closes properly.

•	Replace any damaged clips (or pin-type retainers).
