Hyundai i-30: Floor Console / Components and components location

Hyundai i30 (PD) 2018-2025 Service Manual / Body (Interior and Exterior) / Floor Console / Components and components location

Components

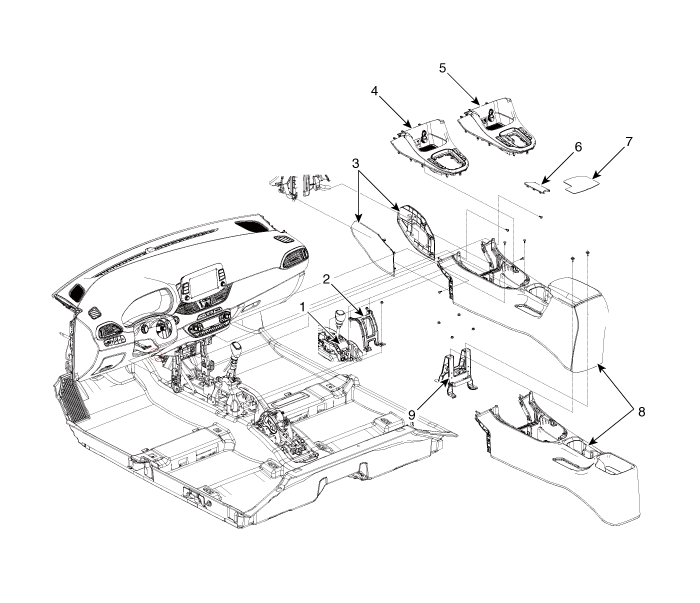

[General console]

1. Console center mounting bracket [AT]
2. Console center mounting bracket [MT]
3. Console side cover
4. Console upper cover assembly [MT]
5. Console upper cover assembly [AT]
6. Parking brake cover
7. Console tray mat
8. Floor console assembly
9. Console rear mounting bracket

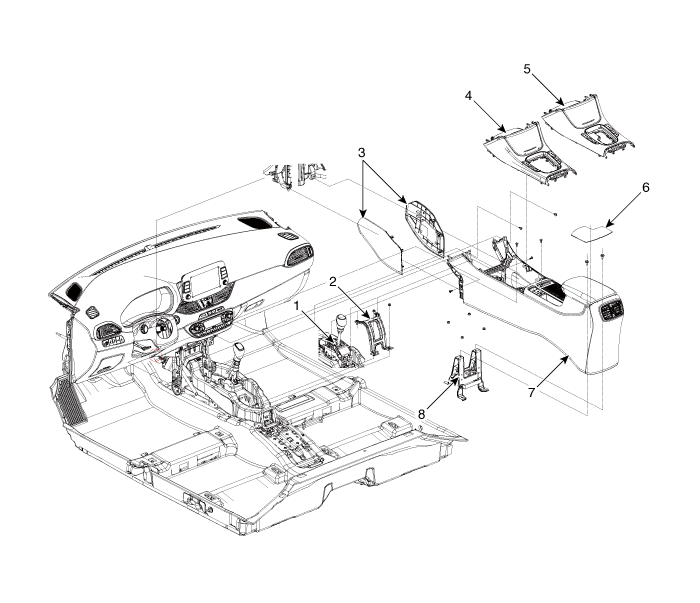

[EPB console]

1. Console center mounting bracket [AT]
2. Console center mounting bracket [MT]
3. Console side cover
4. Console upper cover assembly [MT]
5. Console upper cover assembly [AT]
6. Console tray mat
7. Floor console assembly
8. Console rear mounting bracket
