Hyundai i-30: Crash Pad / Cluster Fascia Panel

Hyundai i30 (PD) 2018-2025 Service Manual / Body (Interior and Exterior) / Crash Pad / Cluster Fascia Panel

Components and components location
Component Location

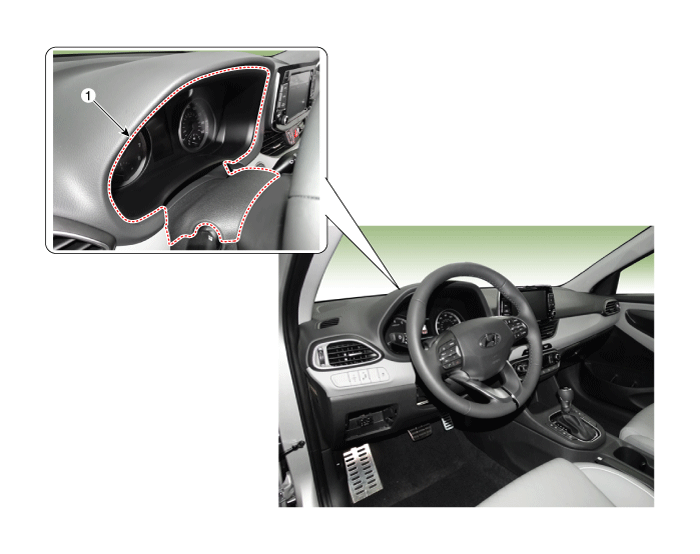

1. Cluster fascia panel


Repair procedures
Replacement

Put on gloves to prevent hand injuries.

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
1.

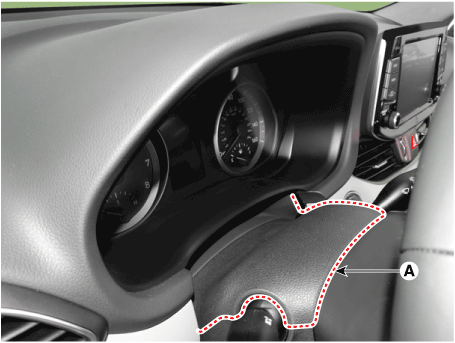

Using a screwdriver or remover, remove the steering column shroud upper panel (A).

2.

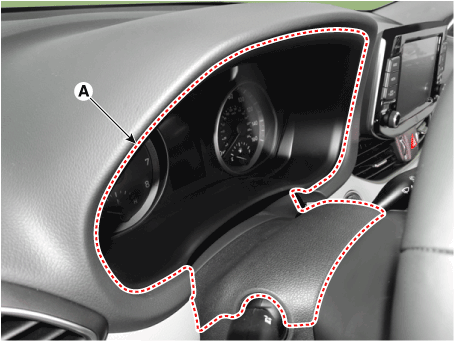

Using a screwdriver or remover, remove the cluster fascia panel (A).

3.
To install, reverse the removal procedure.

Replace any damaged clips (or pin-type retainers).
