Hyundai i-30: Crash Pad / Components and components location
Hyundai i30 (PD) 2018-2025 Service Manual / Body (Interior and Exterior) / Crash Pad / Components and components location

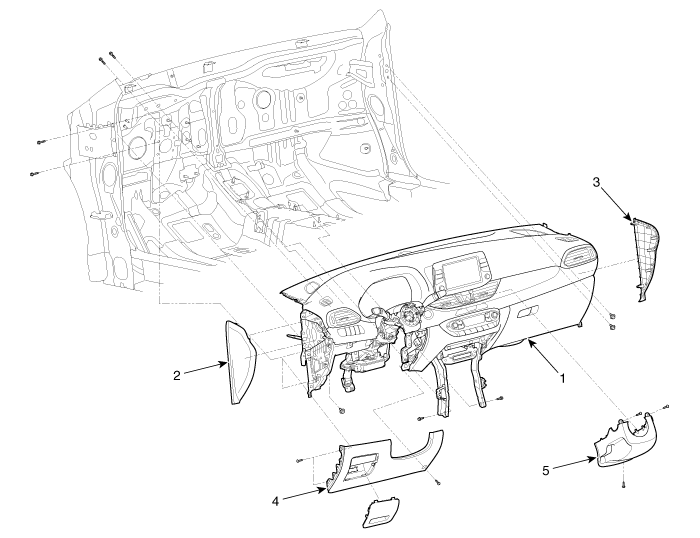

| Components (1) |
| 1. Crash pad
assembly 2. Crash pad side cover [LH] 3. Crash pad side cover [RH] |
4. Crash pad
lower panel 5. Steering column shroud lower panel |

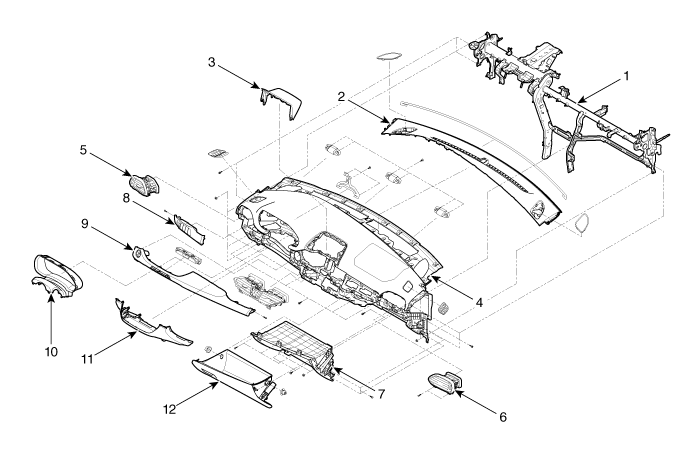

| Componets (2) |
| 1. Cowl cross
bar assembly 2. Center defroster garnish assembly 3. Center pillar upper panel assembly 4. Main crash pad assembly 5. Side defroster nozzle [LH] 6. Side defroster nozzle [RH] |
7. Glove box
upper cover assembly 8. Crash pad side garnish [LH] 9. Crash pad side garnish [RH] 10. Cluster fascia panel 11. Crash pad center lower cover 12. Glove box |
Crash Pad
..
Cluster Fascia Panel
Components and components location
Component Location
1. Cluster fascia
panel
Repair procedures
Replacement
•
Put on gloves to prevent hand injuries...
