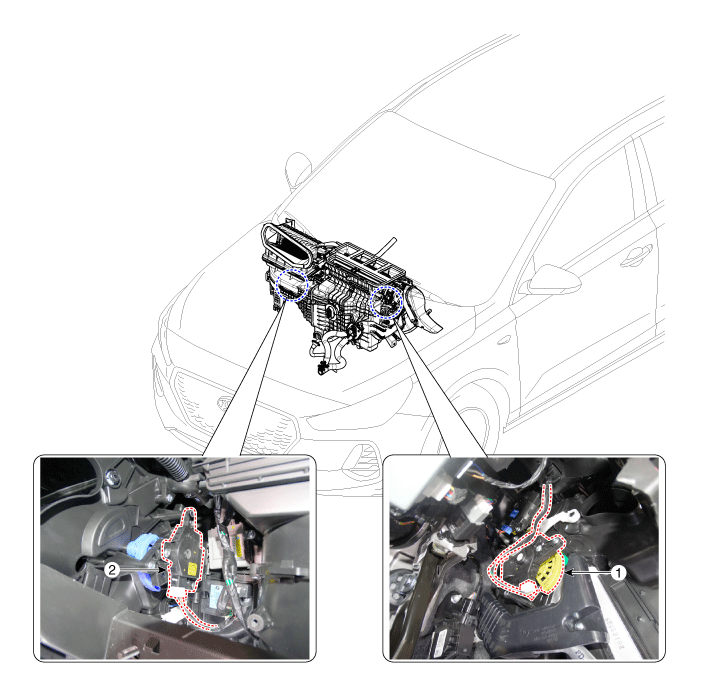

Components Location |
1. Temperature
control actuator [LH] |
2. Temperature
control actuator [RH] |
Description |
Inspection |
1. |
Turn the ignition switch OFF.
|
2. |
Disconnect the temperature control actuator connector.
|
3. |

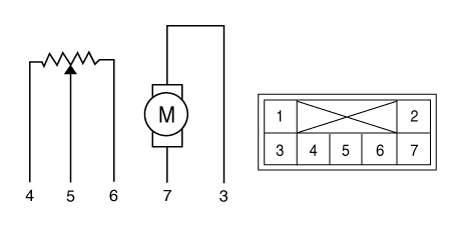

Verify that the temperature control actuator operates to the cool position
when connecting 12V to terminal 3 and grounding terminal 7.
Verify that the temperature control actuator operates to the warm position
when connected in reverse.
[Driver's side temperature control actuator]
[Passenger's side temperature control actuator]
|
4. |
Connect the temperature control actuator connector.
|
5. |
Turn the ignition switch ON.
|
6. |
Check the voltage between terminal 5 and 6.
Specification
|
7. |
If the measured voltage is not within specification, check the operation
by replacing the existing temperature control actuator with a new genuine
part. After that, determine whether replacement of the temperature control
actuator is required or not.
|
Diagnosis With GDS |
1. |
The heating, ventilation and air conditioning can be quickly diagnosed
failed parts with vehicle diagnostic system (GDS).
※ The diagnostic system (GDS) provides the following information.
(1) Self diagnosis : Checking the failure code (DTC) and display.
(2) Current data : Checking the system input/output data state.
(3) Actuation test : Checking the system operation condition.
(4) Additional function : Other controlling such as he system option
and zero point adjustment.
|
2. |
Select the 'Car model' and the system to be checked in order to check
the vehicle with the tester.
|
3. |

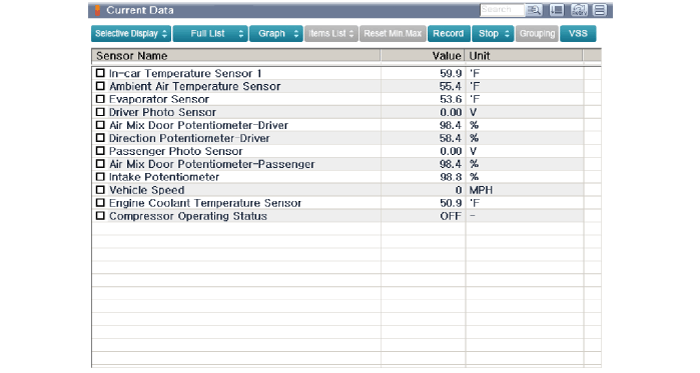

Select the 'Current data' menu to search the current state of the input
/ output data.
The input / output data for the sensors corresponding to the Temperature
Control Actuator can be checked.
|
4. |

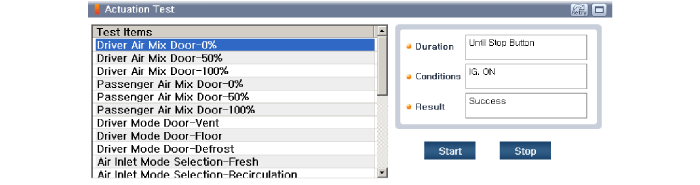

To perform compulsory operation on Temperature Control Actuator input
factors, select "ACTUATION TEST".
|
Replacement |
1. |
Disconnect the negative (-) battery terminal.
|
2. |
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
|
3. |

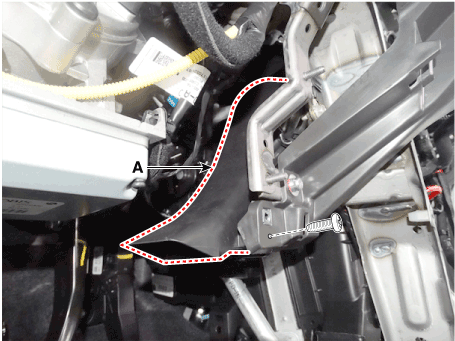

Remove the driver's side shower duct (A) after loosening the screw.
|
4. |

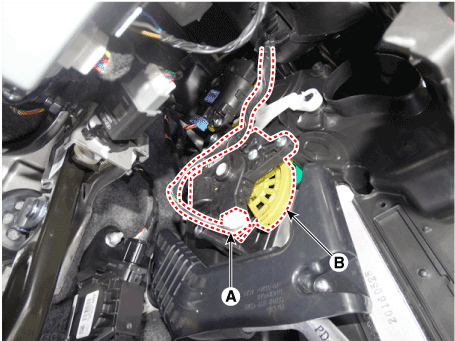

Disconnect the connector (A) and then remove the driver's side temperature
control actuator (B) after loosening the mounting screws.
|
5. |
To install, reverse the removal procedure.
|
1. |
Disconnect the negative (-) battery terminal.
|
2. |
Remove the glove box upper cover assembly.
(Refer to Body - "Glove Box Upper Cover Assembly")
|
3. |

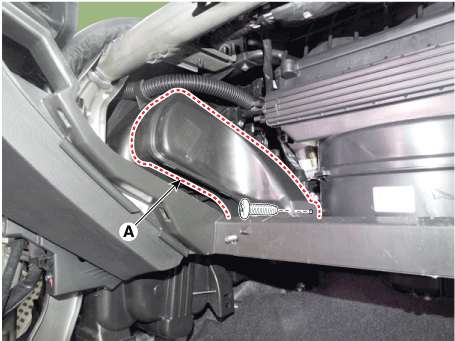

Remove the passenger's side shower duct (A) after loosening the screw.
|
4. |

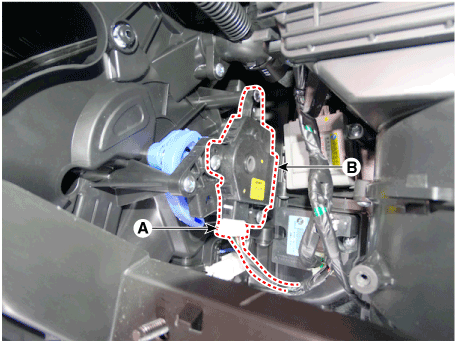

Disconnect the connector (A) and then remove the passenger's side temperature
control actuator (B) after loosening the mounting screws.
|
5. |
To install, reverse the removal procedure.
|
