Hyundai i-30: Rear Suspension System / Rear torsion beam axle

Hyundai i30 (PD) 2018-2024 Service Manual / Suspension System (NON-ECS) / Rear Suspension System / Rear torsion beam axle

Components and components location
Components

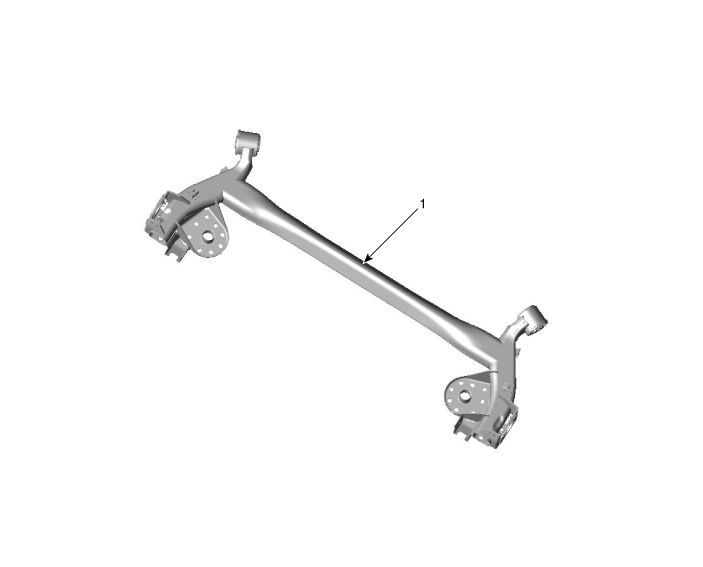

1. Torsion beam axle

Repair procedures
Removal
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.

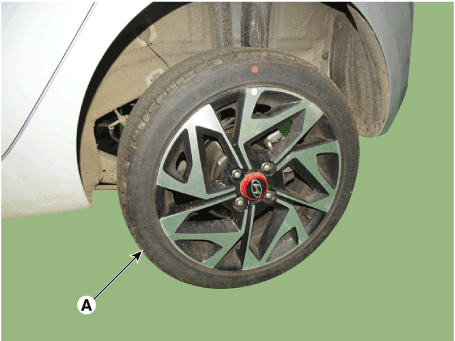

Remove the rear wheel and tire (A) from the rear hub.


•
Be careful not to damage the hub bolts when removing the rear wheel and tire (A).
3.
Remove the brake caliper from the torsion beam axle.
(Refer to Brake System - "Rear Disc Brake")
4.

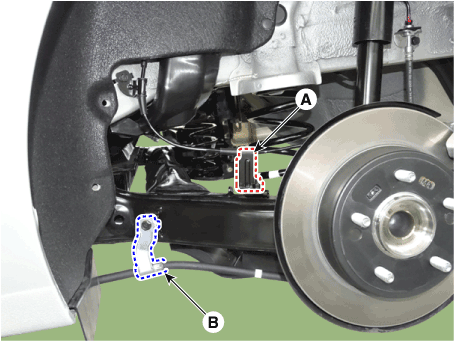

Loosen the mounting bolt and then remove the wheel speed sensor cable bracket (A) and parking brake cable bracket (B).
Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

5.
Remove the rear hub bearing assembly.
(Refer to Dirveshaft and axle - "Rear Axle assembly")
6.

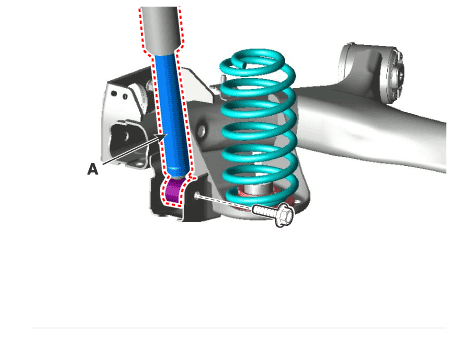

Loosen the bolt & nut and then remove the rear shock absorber (A) from the torsion beam axle.
Tightening torque :
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

7.

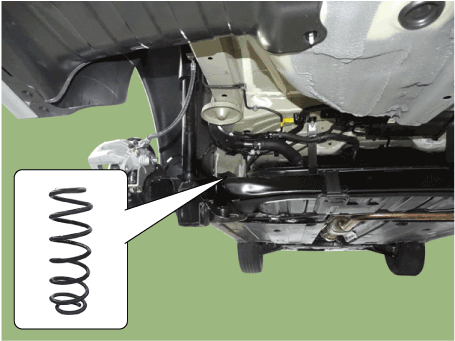

Remove the coil spring.
8.

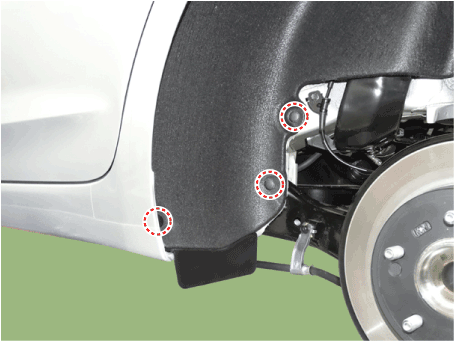

Remove the fixed clip and then lift up the wheel housing.
9.

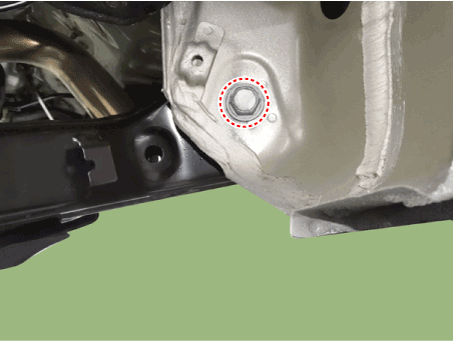

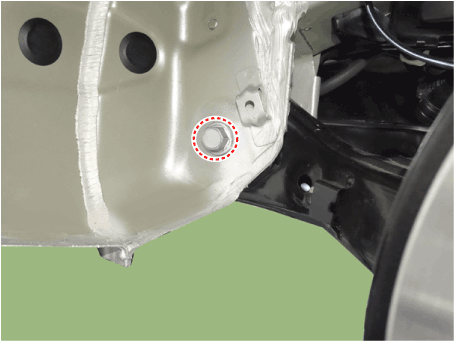

Loosen the mounting bolt and then remove the torsion beam axle.
Tightening torque :
156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb-ft)
[RH]

[LH]
10.
To install, reverse the removal procedure.
11.
Check the front alignment.
(Refer to Suspension System - "Front Alignment")
Replacement
[Rear torsion beam axle bush replace]
1.
Remove the rear torsion beam axle from the vehicle.
(Refer to Rear Torsion Beam Axle - "Removal")
2.

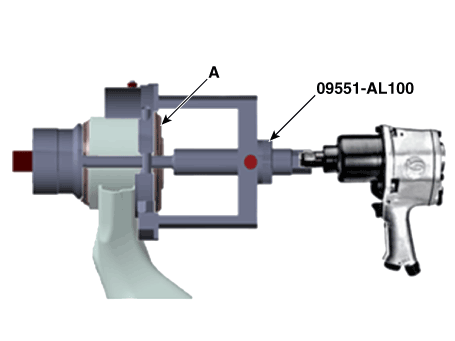

Using the SST (09551-AL100) and press, replace the bush (A).


•

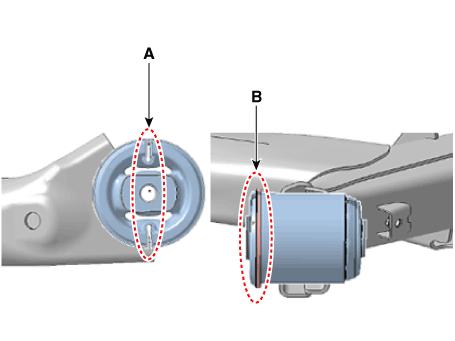

When press in the bush, press the same direction of the void (A) and the flange direction (B) before detaching.

    Rear Coil Spring
