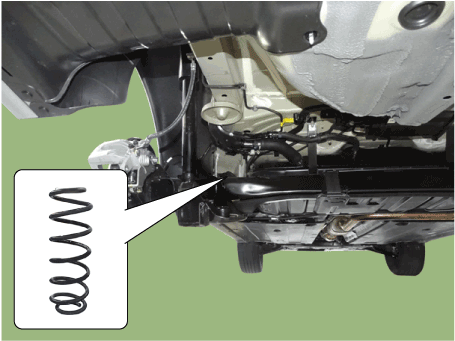

Components and components location

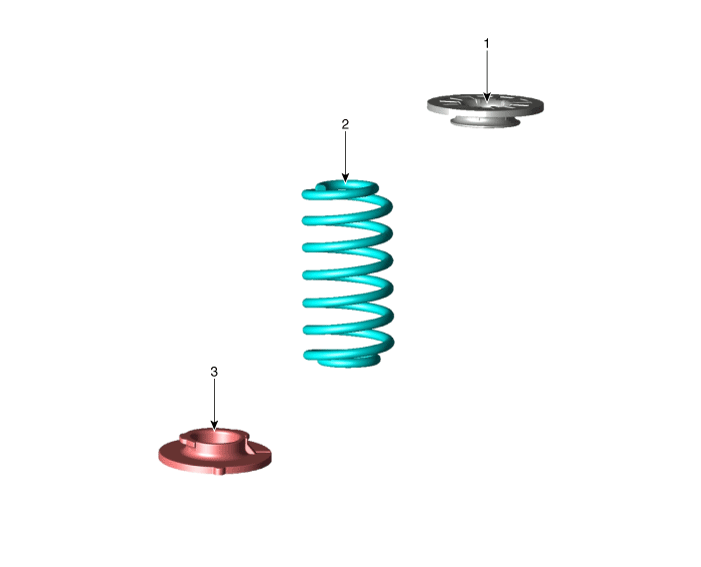

Components

1. Spring upper pad
2. Coil spring

3. Spring lower pad

Repair procedures

Removal

1.	Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported.

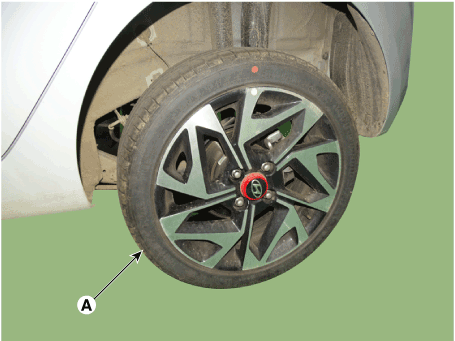

Remove the rear wheel and tire (A) from the rear hub.

•	Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

3.	Remove the parking brake cable. (Refer to Brake System - "Parking Brake System")

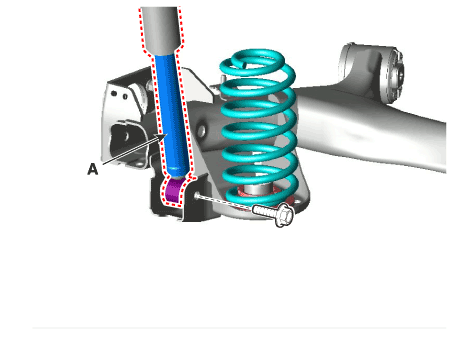

Loosen the bolt & nut and then remove the rear shock absorber (A) from the torsion beam axle.

Tightening torque :

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

5.	Remove the coil spring.

6.	To install, reverse the removal procedure.

Inspection

1.	Check the spring for distortion, aging or damage.

2.	Check the spring upper pad and lower pad for aging or damage.
