Hyundai i-30: General Information / Lift and Support Points
| •
|
When heavy rear components such as suspension, fuel tank, spare
tire, tailgate and trunk lid are to be removed, place additional
weight in the luggage area before hoisting. When substantial
weight is removed from the rear of the vehicle, the center of
gravity may change and can cause the vehicle to tip forward
on the hoist.
|
|
| •
|
With each tire/wheel assembly weighing approximately 30lbs (14kg),
placing the front wheels in the luggage area can help the weight
distribution.
|
| •
|
Use the same support points to support the vehicle on safety
stands.
|
|
|
1. |

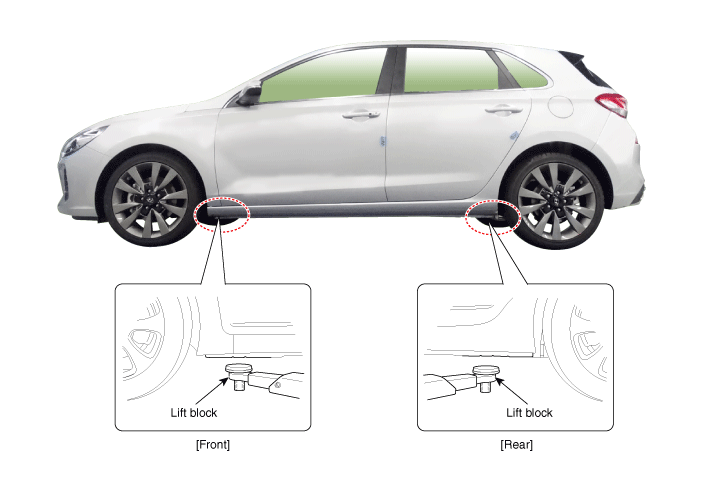

Place the lift blocks under the support points as shown in the illustration.
|
|
2. |
Raise the hoist a few inches (centimeters) and rock the vehicle to make
sure that the vehicle is firmly supported.
|
|
3. |
Raise the hoist to full height to check whether the vehicle is firmly
supported.
|
