Hyundai i-30: Fuel Delivery System / Fuel Tank
Repair procedures
1. |
Turn the ignition switch OFF and disconnect the battery (-) terminal.
|
2. |
Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "Release Residual Pressure in Fuel
Line")
|
3. |
Remove the rear seat.
(Refer to Body (Interior and Exterior) - "Rear Seat Assembly")
|

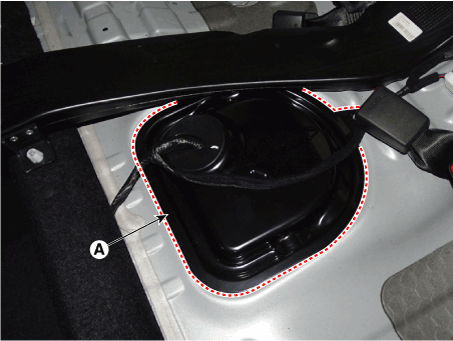

4. |
Remove the fuel pump service cover (A).

|

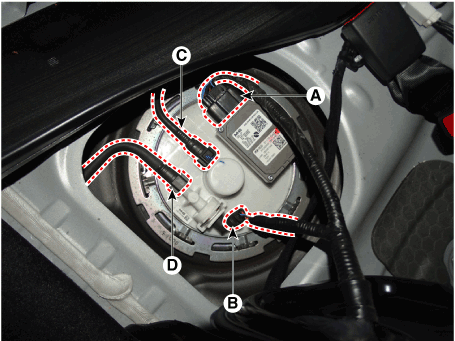

5. |
Disconnect the fuel pump control module connector (A).
|
6. |
Disconnect the fuel pressure sensor connector (B).
|
7. |
Disconnect the fuel feed tube quick-connector (C).
|
8. |
Disconnect the vapor hose quick-connector (D).

|

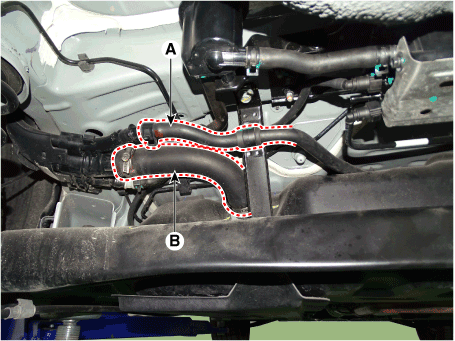

9. |

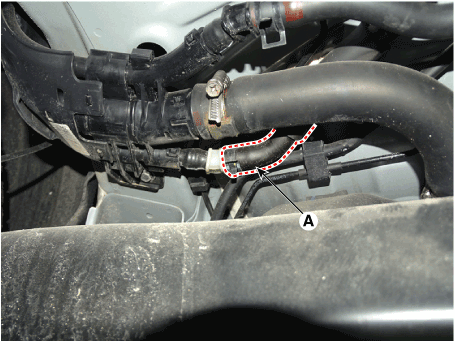

Disconnect the leveling hose (A).
|
10. |
Disconnect the fuel filler hose (B).
Tightening torque :
4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)
|

|
11. |
Disconnect the ventilation hose (A).

|

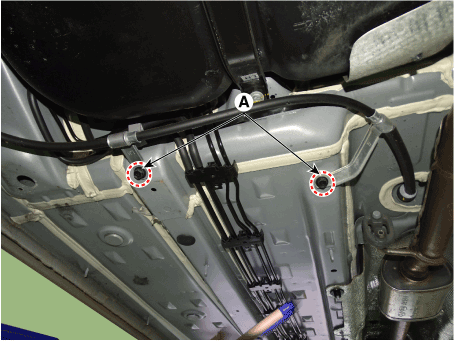

12. |
Separate the brake line after removing the bracket mounting bolts (A).
Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
|

|

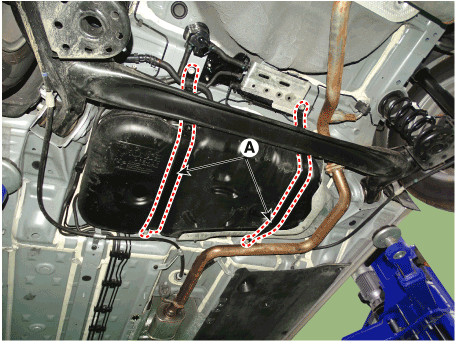

13. |
Remove the fuel tank band (A).
Tightening torque :
39.2 - 54.0 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)
|

• |
Support the jack to avoid damaging the fuel tank.

|
|
|

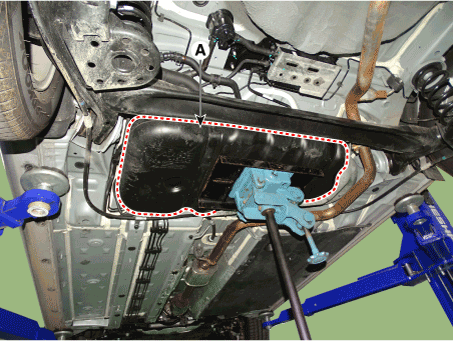

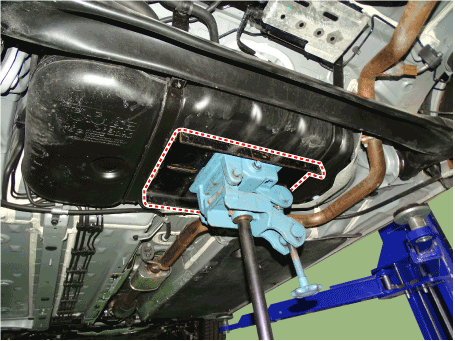

14. |
Remove the fuel tank (A).

|
1. |
Install in the reverse order of removal.
|
