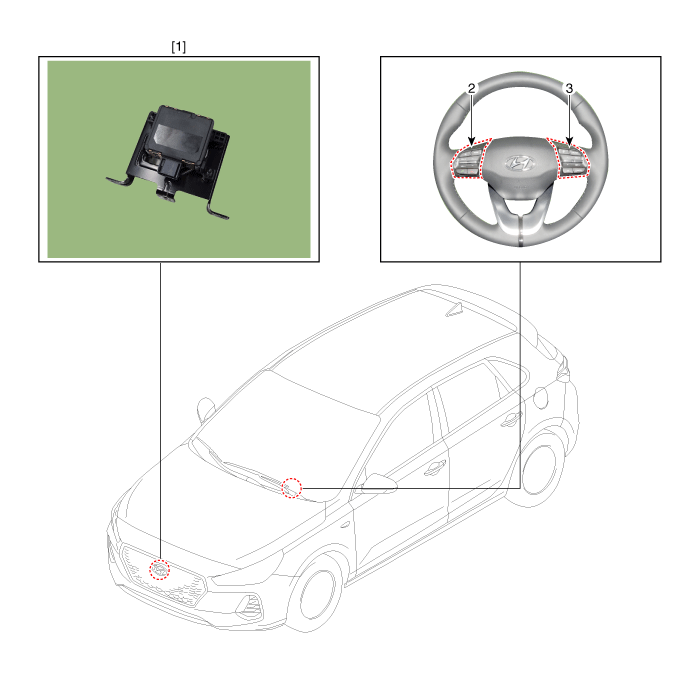

Hyundai i-30: Front Radar System / Components and components location
1. Front rader
unit
2. Remote control switch (LH : Audio swtich)
|
3. Remote control
switch (RH : Cruise)
|
General Safety Information
and Caution
1.
Be careful when driving the vehicle using the smart cruise control system
as follows...
Description and operation
The System may be limited when
•
The radar sensor or camera is blocked with a foreign object
or debris...
Other information:
Specifications
Specifications
Items
Blind-Spot Collision Warning (BCW)
Blind-Spot Collision- Avoidance Assist-Rear (BCA-R)
Rated voltage
DC 12V
Operating voltage
9V - 16V
Operating speed
20 km/h - 255 km/h
60 km/h - 200 km/h
Sensible distance
70m
Curvature radius
Start : More than 100m
Start : More than 625m
Stop : Less than 70m
Stop : Less than 588m
Frequency
24 GHz
Numbers
2EA
Items
Rear Cross-Traffic Collision Warning (RCCW)
Rear Cross-Traffic Collision- Avoidance Assist (RCCA)
Rated voltage
DC 12V
Operating voltage
9V - 16V
Operating speed
0 km/h - 10 km/h
Sensible distance
25m
Curvature radius
-
Frequency
24 GHz
Numbers
2EA
Items
Safe Exit Assist (SEA)
Rated voltage
DC 12V
Operating voltage
9V - 16V
Operating speed
0 km/h - 3 km/h
Sensible distance
25m
Curvature radius
-
Frequency
24GHz
Numbers
2EA
Schematic diagrams
Circuit Diagram
[5Door]
[Wagon]
[Fastback]
Repair procedures
Removal
1...
Description and operation
Description
The EGR Pressure Sensor is installed on the differential pressure valve and
measures the pressure of the exhaust gas recirculation.
Specifications
Specification
Pressure [kPa (kgf/cm², psi)]
Output Voltage (V)
10 (0...
