Hyundai i-30: Audio / Audio Unit

Hyundai i30 (PD) 2018-2024 Service Manual / Body Electrical System / Audio / Audio Unit

Components and components location
Components

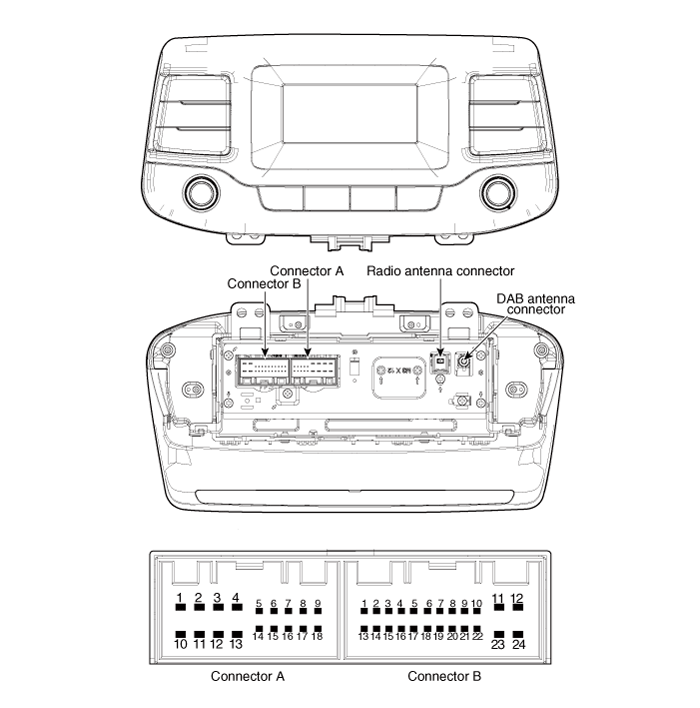

Audio

Connector Pin Information
NO
Connector A
Connector B
1
 Rear left speaker (+)
 -
2
 Front left speaker (+)
 -
3
 Front right speaker (+)
 -
4
 Rear right speaker (+)
 Steering wheel key
5
 -
 -
6
 Door open
 USB data (HI)
7
 IGN 1
 USB VCC
8
 ILL (+)
 -
9
 DETENT
 -
10
 Rear left speaker (-)
 MIC signal (+)
11
 Front left speaker (-)
 ACC
12
 Front right speaker (-)
 Battery (+)
13
 Rear right speaker (-)
 -
14
 -
 -
15
 -
 -
16
 -
 Speed
17
 ILL (-)
 Steering wheel key GND
18
 Antenna Power
 USB data (LOW)
19
USB GND
20
 -
21
 -
22
 MIC signal (-)
23
 -
24
 GND

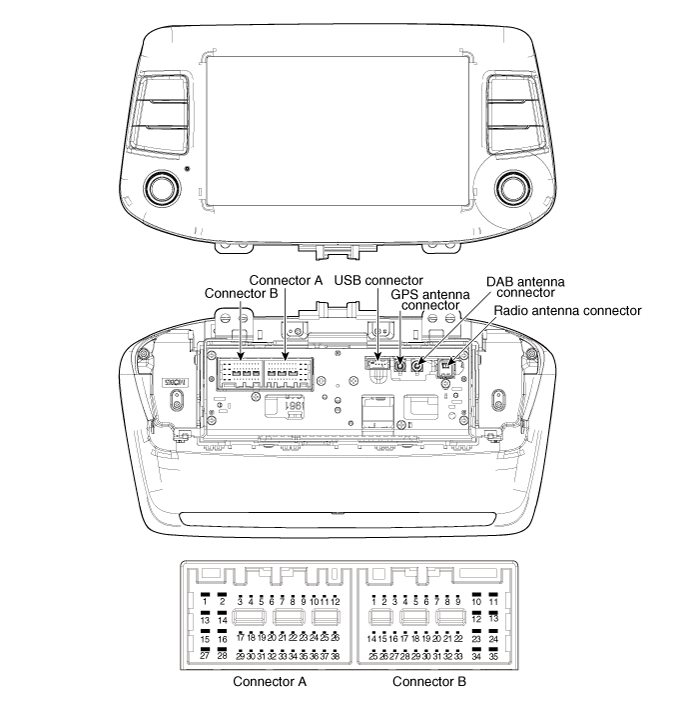

Display Audio

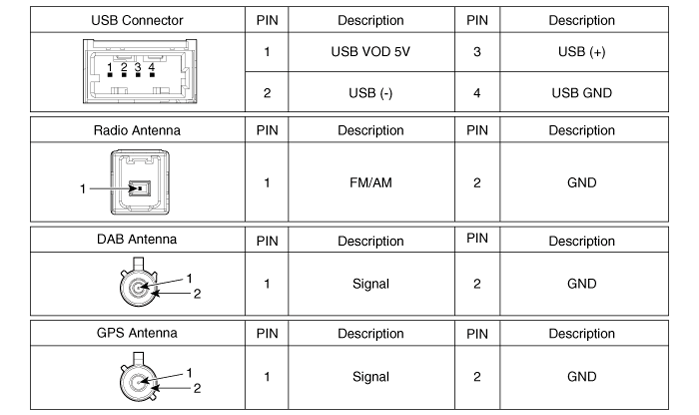

Connector Pin Information
No
Connector A
Connector B
1
 Rear door speaker (Left +)
-
2
 Rear door speaker (Left -)
Mic_Signal (+)
3
 USB Ground
-
4
 USB Data_High
-
5
 USB Data_Low
Antenna power
6
 USB_VCC
Illumination (+)
7
 Camera video
MM CAN (High)
8
 -
-
9
 -
-
10
 AUX Audio R
Battery (+)
11
 AUX Detect
Battery (+)
12
 Steering wheel remote
Ground
13
 Front door speaker (Left +)
Ground
14
 Front door speaker (Left -)
Mic_Ground
15
 Front door speaker (Right -)
Mic_Signal (-)
16
 Front door speaker (Right +)
-
17
 -
-
18
 -
Vehicle speed
19
 -
Illumination (-)
20
 Camera power ground
MM CAN (Low)
21
 Camera video ground
-
22
 -
ACC
23
 -
-
24
 AUX Audio L
-
25
 AUX Audio ground
-
26
 Steering wheel remote grond
Door open
27
 Rear door speaker (Right -)
-
28
 Rear door speaker (Right +)
-
29
 -
-
30
 -
-
31
 -
-
32
 Camera power ground
IGN 1
33
 Camera shield ground
-
34
 -
-
35
 -
-
36
 Camera_Detect

37
 -
38
 -

Repair procedures
Removal

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Eject all the disc before removing the Audio head unit to prevent damaging the CD player's load mechanism.
•
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•
Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.
1.
Disconnect the negative (-) battery terminal.
2.
Remove the center fascia panel.
(Refer to Cluster Pad - "Center Fascia Panel")
3.
Remove the crash pad garnish assembly [RH].
(Refer to Crash Pad - "Crash pad side garnish assembly [RH]")
4.
Remove the hazard switch.
(Refer to Lighting System - "Hazard Lamp Switch")
5.

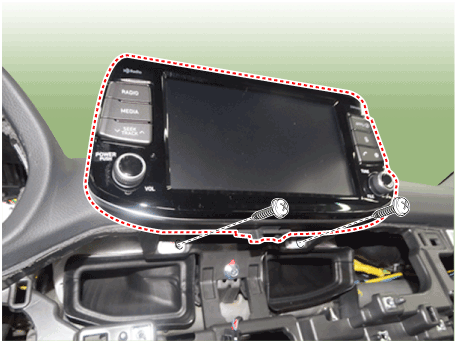

Remove the audio head unit assembly after loosening the mounting screws.
6.

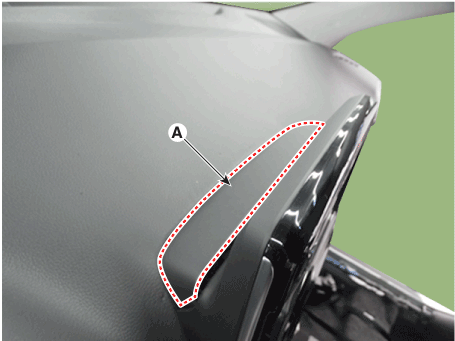

Remove the audio unit assembly after disangaging the upper cover (A).
7.

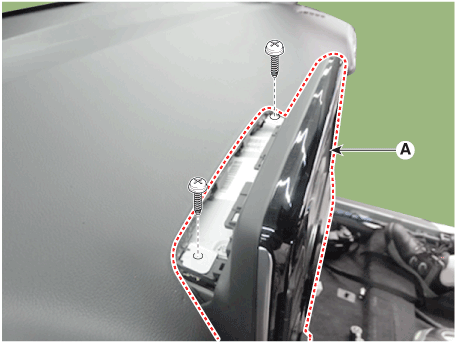

Remove the audio unit assembly (A) after loosening the mounting screws.
8.

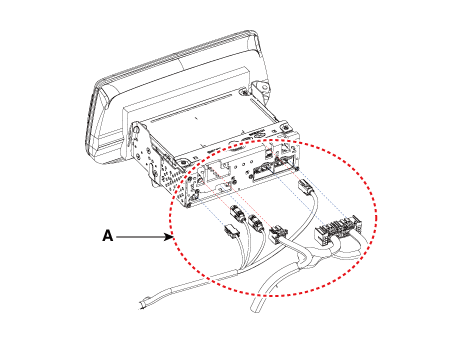

Remove the audio head unit after disconnecting the connectors and cable (A).


•
When the compact disc is not ejected, do not remove it forcibly.
Installation
1.
Connect the avn head unit connectors and cable.
2.
Install th audio head unit.
3.
Install the center pascia panel.
4.
Connect the negative (-) battery terminal.

•
Make sure that the cables and connectors are plugged in properly.
•
Check the audio system for normal operation.
