Components and components location

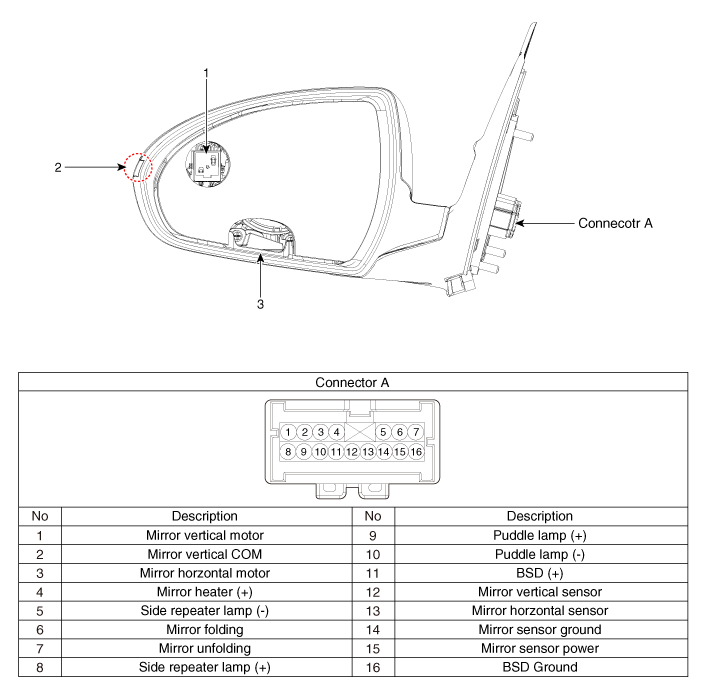

Components

1. BSD Indicator
2. Side repeater lamp
3. Puddle lamp

Repair procedures
Removal
Blind Spot Detection warning Indicator
1.
Disconnect the negative (-) battery terminal.
2.

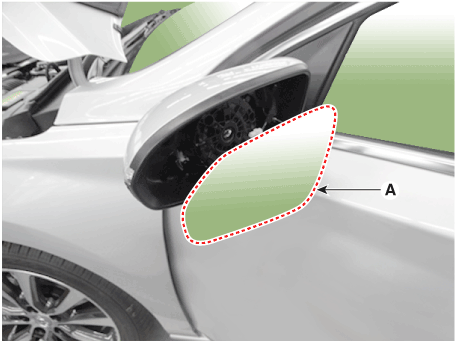

Remove the mirror (A).

Installation
Blind Spot Detection Warning Indicator
1.
Install the outside mirror.
2.
Connect the negative (-) battery terminal.
Inspection
1.
Disconnect the negative (-) battery terminal.
2.

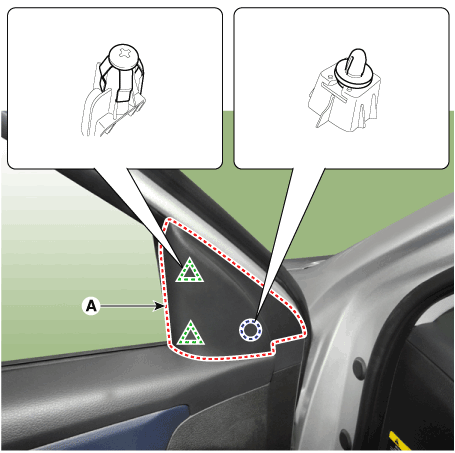

Remove the front door quadrant inner cover (A).

3.

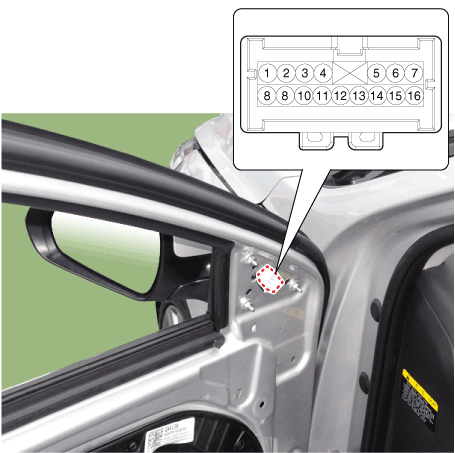

Disconnect the power door mirror connector from the harness.

4.

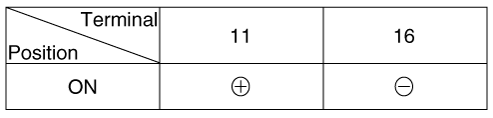

Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
[BSD Indicator]

    Rear Corner Safety ON/OFF Switch
