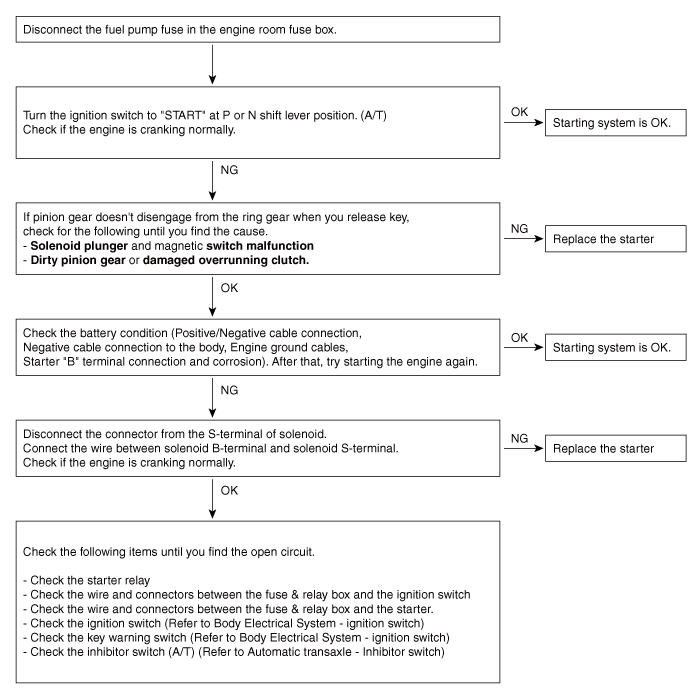

Troubleshooting

•
The battery must be in good condition and fully charged for this troubleshooting.

Trouble symptom
Probable cause
Remedy
Engine will not crank
 Battery charge low
 Charge or replace battery
Battery cables loose, corroded or worn out
 Repair or replace cables
Transaxle range switch
(Vehicle with automatic transaxle only)
 Refer to AT group-automatic transaxle
Fuse blown
 Replace fuse
Starter motor faulty
 Replace
Ignition switch faulty
 Replace
Engine cranks slowly
 Battery charge low
 Charge or replace battery
Battery cables loose, corroded or worn out
 Repair or replace cables
Starter motor faulty
 Replace
Starter keeps running
 Starter motor faulty
 Replace
Ignition switch
 Replace
Starter spins but engine will not crank
 Short in wiring
 Repair or replace wiring
Pinion gear teeth broken or starter motor
 Replace
Ring gear teeth broken
 Replace fly wheel or torque converter
