Repair procedures
Removal and Installation
1.
Remove the crankshaft damper pulley.
(Refer to Timing System - "Crankshaft Damper Pulley")
2.

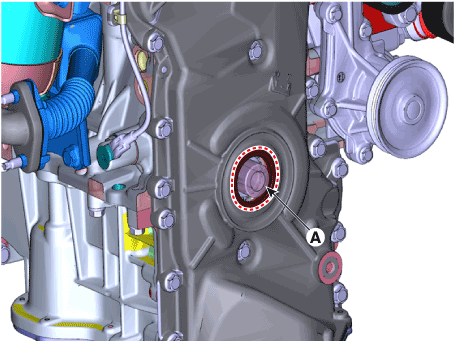

Remove the front oil seal (A).
3.

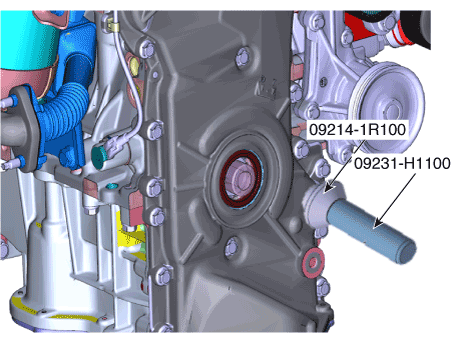

Using the SST (09214-1R100, 09231-H1100), install a new front oil seal, apply engine oil on the edge of new oil seal.

•
Do not reuse the front oil seal.

4.
Install in the reverse order of removal.
