Hyundai i30 (PD) 2018-2025 Owner's Manual / Convenient features of your vehicle / Storage compartment

WARNING

Never store cigarette lighters, propane cylinders, or other flammable/explosive materials in the vehicle. These items may catch fire and/or explode if the vehicle is exposed to hot temperatures for extended periods.

WARNING

ALWAYS keep the storage compartment covers closed securely whilst driving. Items inside your vehicle are moving as fast as the vehicle. If you have to stop or turn quickly, or if there is a crash, the items may fly out of the compartment and may cause an injury if they strike the driver or a passenger.

NOTICE

To avoid possible theft, do not leave valuables in the storage compartments.

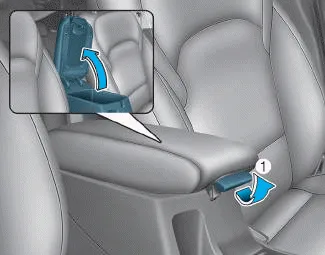

Centre console storage

Hyundai i30. Storage compartment

To open :

Pull the lever (1).

Climate control additional features

Automatic ventilation To increase cabin air quality and reduce windscreen misting, air recirculation mode switches off automatically after about 5 to 30 minutes, depending on outside temperature, and the air intake will change to outside (fresh) mode...

Glove box

To open the glove box, pull the handle (1) and the glove box will automatically open. Close the glove box after use. WARNING ALWAYS close the glove box door after use...
