Hyundai i-30: Seat Electrical / Seat Heater Switch

Hyundai i30 (PD) 2018-2024 Service Manual / Body Electrical System / Seat Electrical / Seat Heater Switch

Components and components location

Components

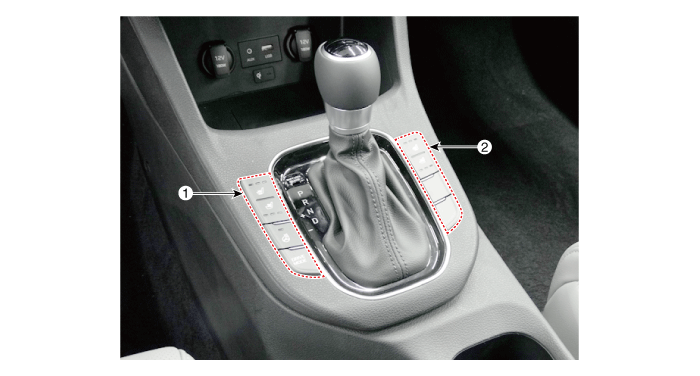

[Front seat switch]

1. Driver seat heater switch

2. Assist seat heater switch

Schematic diagrams

Circuit Diagram

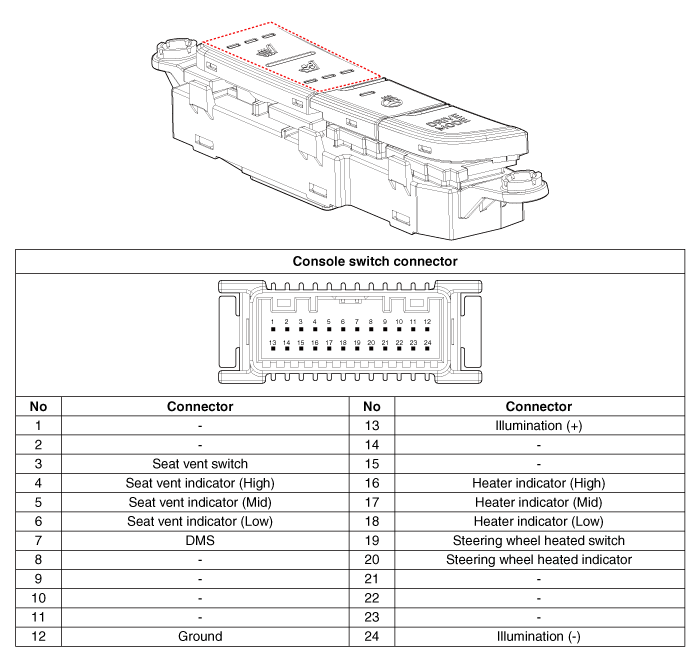

[Front Seat Heater Switch(Driver)]

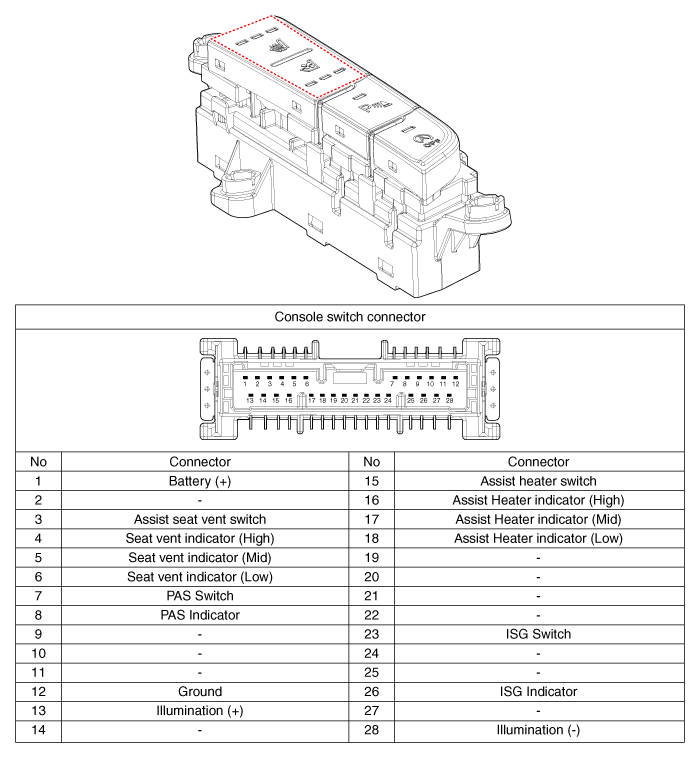

[Front Seat Heater Switch(Assist)]

Repair procedures

Removal

[Front Seat]

1.	Disconnect the negative (-) battery terminal.

2.	Remove the floor console upper cover assembly. (Refer to Body - "Floor Console Assembly")

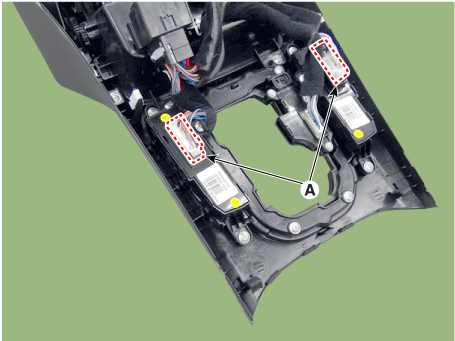

3.	Disconnect the Drver / Assist console switch connector (A).

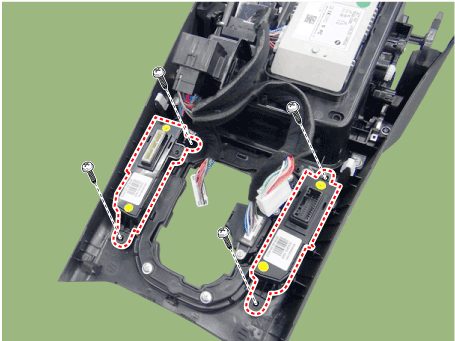

4.	Remove the console switch after loosening the mounting the screws.

Installation

[Front Seat]

1.	Install the console switch.

2.	Install the floor console upper cover assembly.

3.	Connect the negative (-) battery terminal.
