Hyundai i-30: Rear Wiper/Washer / Rear Washer Motor

Hyundai i30 (PD) 2018-2025 Service Manual / Body Electrical System / Rear Wiper/Washer / Rear Washer Motor

Repair procedures
Inspection
1.
With the washer motor connected to the reservoir tank, fill the reservoir tank with water.

Before filling the reservoir tank with water, check the filter for foreign material or contamination. if necessary, clean the filter.
2.
Remove the front bumper cover.
(Refer to Body - "Front Bumper Cover")
3.

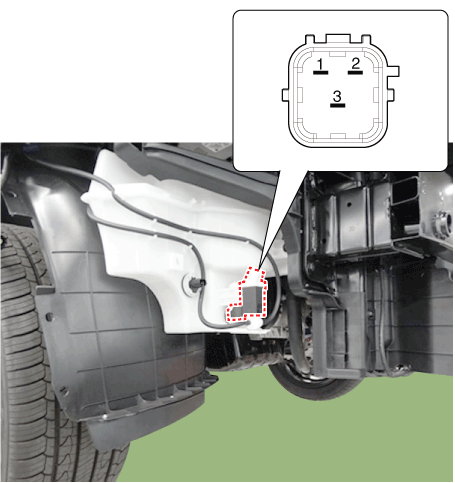

Connect positive (+) battery cables to terminal 3 and negative (-) battery cables to terminal 2 respectively.
4.
Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles.
5.
If they are abnormal, replace the washer motor.
[Front & Rear washer]
No
Description
1
Ground
2
Front windshield washer (+)
3
Rear windshield washer (+)
