Hyundai i-30: Cylinder Block / Rear Oil Seal

Hyundai i30 (PD) 2018-2024 Service Manual / Engine Mechanical System / Cylinder Block / Rear Oil Seal

Repair procedures

Removal

1.	Remove the dual clutch transmission assembly. (Refer to Double Clutch Transmission (DCT) System - "Double Clutch Transmission (DCT)")

2.	Remove the flywheel. (Refer to Cylinder Block - "Fly Wheel")

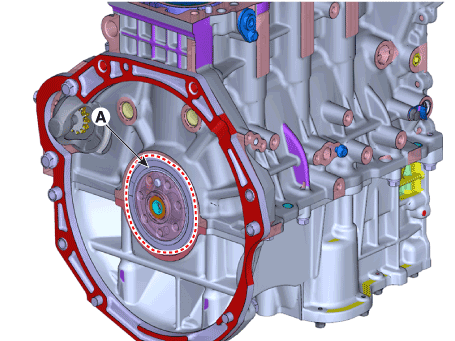

3.	Remove the rear oil seal (A).

Installation

Install a new rear oil seal.

(1)	Apply engine oil on the edge of new oil seal.

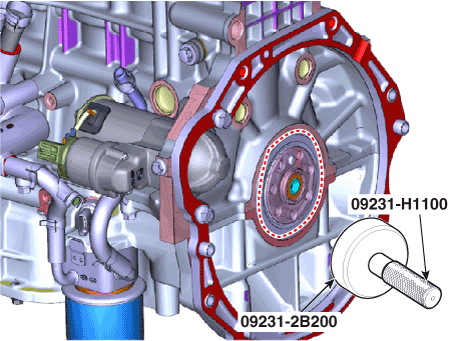

(2)	Using SST (09231-H1100, 09231-2B200) and a hammer, tap in the oil seal (A) until SST surface is flush with the cylinder block. At this time, from the cylinder block surface.

2.	Install the other parts reverse order of removal.
