Hyundai i-30: Lighting System / High Mounted Stop Lamp

Hyundai i30 (PD) 2018-2024 Service Manual / Body Electrical System / Lighting System / High Mounted Stop Lamp

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the rear spoiler. (Refer to Body - "Rear Spoiler")

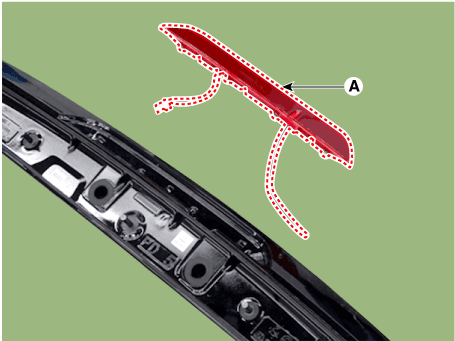

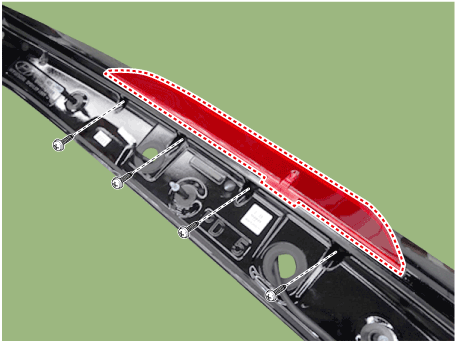

3.	Remove the high mounted stop lamp assembly (A) after loosening the mounting screws.

Installation

1.	Install the rear high mounted stop lamp.

2.	Install the rear spoiler.

3.	Connect the negative (-) battery terminal.
