Hyundai i-30: Air Conditioning System / Description and operation

Hyundai i30 (PD) 2018-2024 Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / Description and operation

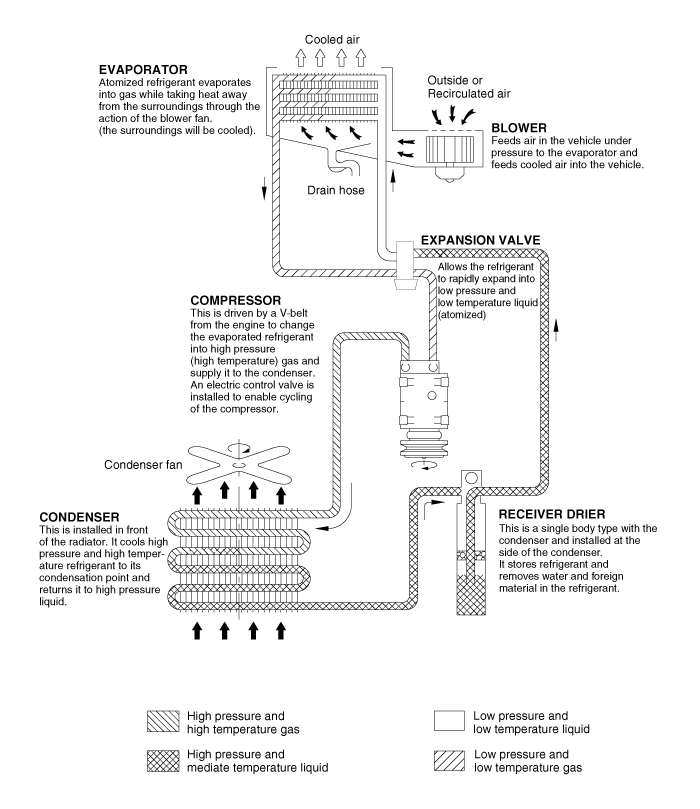

Refrigeration Cycle

General safety information and caution

Instructions (R-134a) When Handling Refrigerant 1. R-134a liquid refrigerant is highly volatile. A drop on the skin of your hand could result in localized frostbite...

Repair procedures

Refrigerant System Service Basics (R-134a) Refrigerant Recovery Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE J2210 to remove R-134a(R-134a) from the air conditioning system...
