Hyundai i-30: Fuel Filler Door / Components and components location
1. Fuel filler
door open switch
|

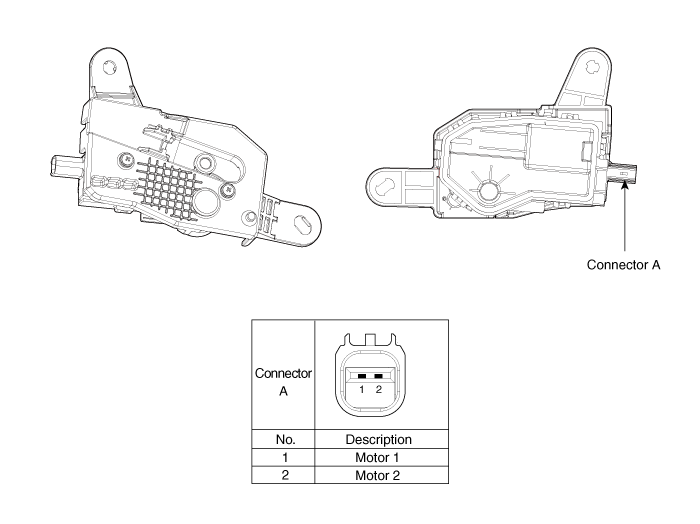

2. Fuel filler
door release actuator
|
Repair procedures
Inspection
1.
Remove the left luggage side trim.
(Refer to Body - "Luggage Side Trim")
2...
Other information:
Specifications
Item
Specification
Master cylinder
Type
Tandem
Cylinder I.D.
22.22 mm
Piston stroke
45 ± 1 mm (1.77 ± 0...
Components and components location
Components
1. Brake member
assembly
2. Stop lamp switch
3. Return spring
4. Brake pedal
arm assembly
5. Brake pedal pad
Schematic diagrams
Schematic Diagram
System Circuit Diagram
Terminal Function
Teminal
Description
1
IGN1
2
BS
3
-
4
B+
5
Stop Lamp
6
Ground
Troubleshooting
Troubleshooting
1...
