Hyundai i-30: BCM (Body Control Module) / Components and components location
Hyundai i30 (PD) 2018-2024 Service Manual / Body Electrical System / BCM (Body Control Module) / Components and components location

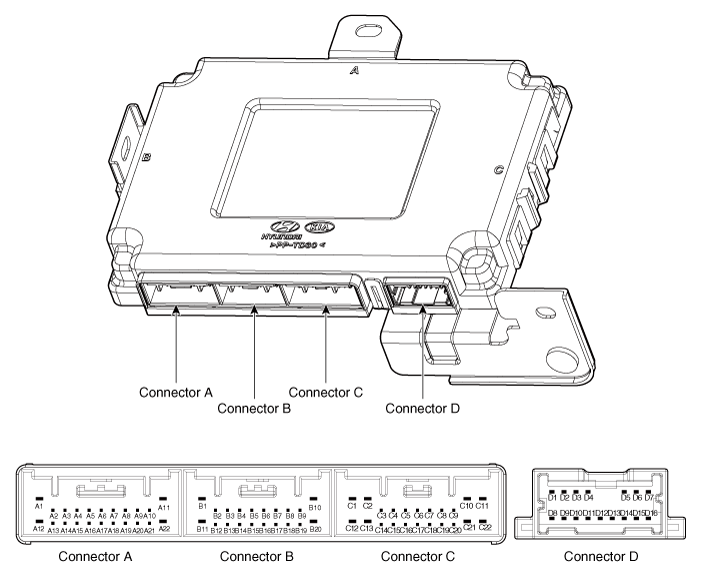

| Components |
|
NO |
Connector A |
Connector B |
Connector C |
Connector D |
|
1 |
Battery + |
Front wiper switch_input |
- |
Door lock indicator_output |
|
2 |
IGN 1 |
Rear wiper switch_input |
Key hole illumination_output |
PAS ON indicator_output |
|
3 |
IGN 2 |
Front wiper int _input |
Assist seat belt indicator_output |
Steering wheel heated indicator_output |
|
4 |
Key in switch_input |
Foglamp switch_input |
Front wiper low relay_output |
Pocket lamp_output |
|
5 |
Front wiper low back up switch_input |
Auto light sensor_input |
PAS buzzer_output |
LIN reserve |
|
6 |
Rear wiper washer switch_input |
NTC Sensor_input |
- |
- |
|
7 |
- |
Sunroof (High)_input |
Front wiper high relay_output |
Key solenoid output |
|
8 |
Blade position low_input |
B CAN (High) |
FPAS Power_output |
Rear right seat belt indicator |
|
9 |
- |
B CAN (Low) |
RPAS Power_output |
Rear center seat belt indicator |
|
10 |
- |
- |
PAS Power |
Rear left seat belt indicator |
|
11 |
Dead lock (Option) |
Rear view switch_input |
Steering wheel heated indicator_output |
ATM Solenoid |
|
12 |
ACC_input |
Window lock switch_input |
Ground power |
PAS |
|
13 |
Front wiper washer switch_input |
- |
Rear wiper relay_output |
Rain sensor |
|
14 |
Brake switch_input |
Light switch |
Mirror unfolding relay_output |
Safety power window ecu |
|
15 |
- |
Head lamp high beam switch_input |
Mirror folding relay_output |
Room lamp_output |
|
16 |
Steering wheel heated switch_input |
Auto light power_output |
- |
Washer heated nozzle_output |
|
17 |
Sunroof open switch_input |
Crash output |
- |
|
|
18 |
PAS ON Switch_input |
Safety power window_output |
Wiper ON relay |
|
|
19 |
PAS Option_input |
Auto light ground_output |
NTC Ground |
|
|
20 |
Rear defogger switch |
- |
Multifunction switch ground |
|
|
21 |
Key inter lock switch |
|
Security indicator |
|
|
22 |
Ground_signal |
Steering wheel heated indicator_power |
