Hyundai i30 (PD) 2018-2025 Service Manual / Body (Interior and Exterior) / Panorama sunroof / Components and components location

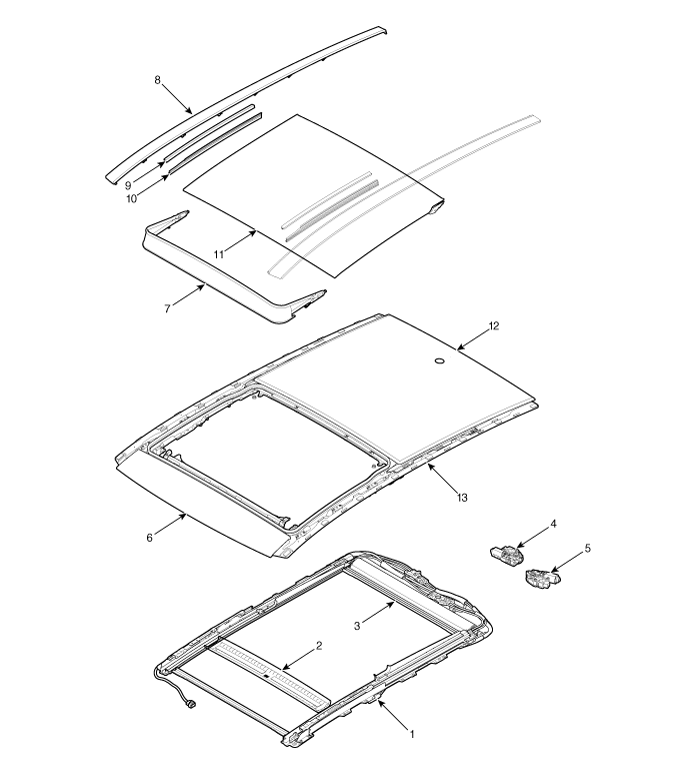

Components

1. Mechanism rail assembly
2. Center cover assembly
3. Roller blind assembly
4. Glass motor
5. Roller blind motor
6. Front glass
7. Wind deflector
8. Side molding assembly
9. Slide
10. Folding cover
11. Movable glass
12. Rear glass
13. Panorama sunroof frame assembly

    Panorama sunroof

    ..

    Repair procedures

    Adjustment Inspect Glass Alignment 1. Perform considerable step alignment after replacing movable glass (A). A - A B- B C -C D - D 2...
