Hyundai i30 (PD) 2018-2024 Service Manual / Brake System / Parking Brake System / Components and components location

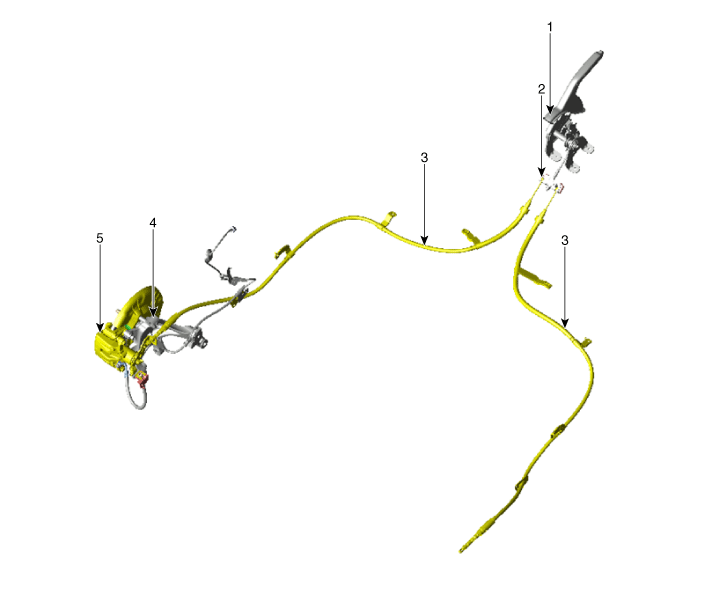

Components

1. Parking brake lever
2. Equalizer assembly
3. Parking brake cable
4. Brake disc
5. Brake caliper

    Parking Brake System

    ..

    Parking Brake Lever

    Repair procedures Removal 1. Disconnect the negative (-) battery cable. 2. Release the parking brake...
