Hyundai i30 (PD) 2018-2025 Service Manual / Suspension System (NON-ECS) / Rear Suspension System / Components and components location

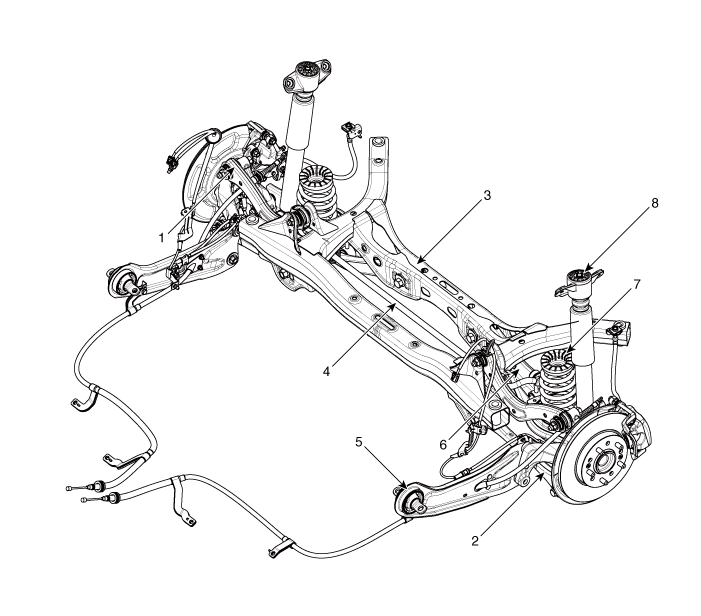

Components Location

1. Rear upper arm
2. Assist arm
3. Rear cross member
4. Rear stabilizer bar
5. Trailing arm
6. Rear lower arm
7. Rear coil spring
8. Rear shock absorber

    Rear Suspension System

    ..

    Rear Shock Absorber

    Components and components location Components 1. Shock absorber dust cap 2. Lock nut 3. Insulator assembly 4...
