Hyundai i-30: Concentric Slave Cylinder Assembly / Components and components location

Hyundai i30 (PD) 2018-2025 Service Manual / Clutch System / Concentric Slave Cylinder Assembly / Components and components location

Components Location

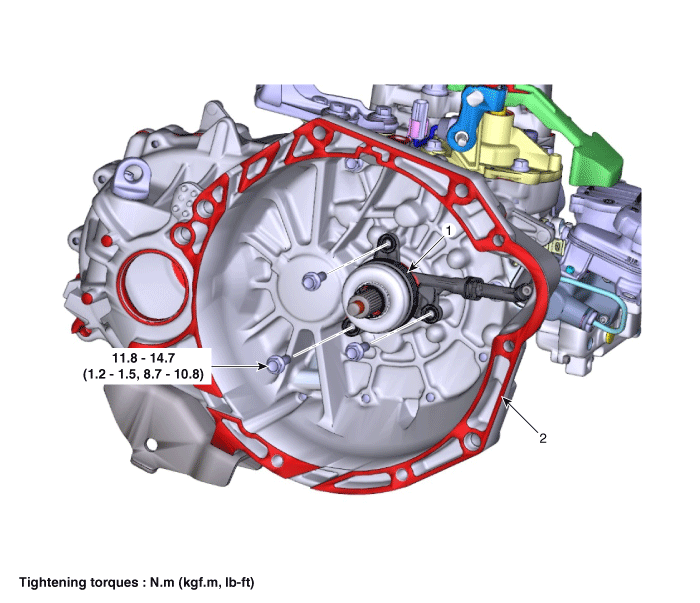

[MT]

1. Concentric slave cylinder assembly (C.S.C)
2. Clutch housing

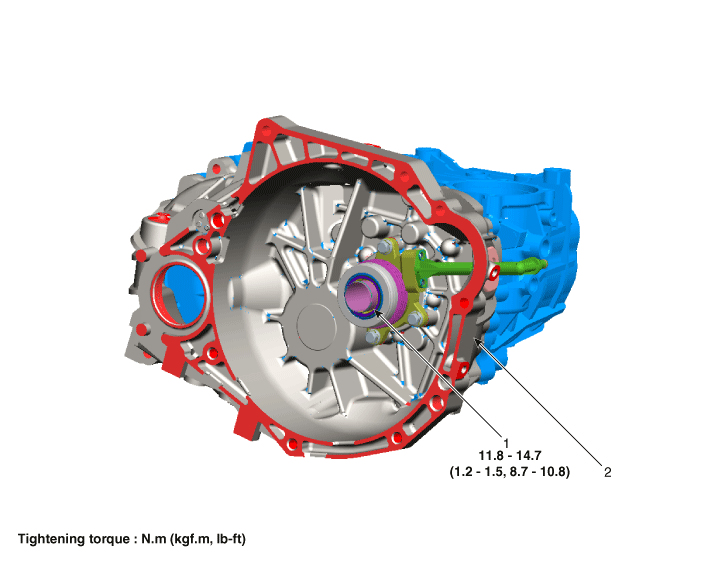

[IMT]

1. Concentric slave cylinder assembly (C.S.C)
2. Clutch housing

    Concentric Slave Cylinder Assembly

    ..

    Repair procedures

    Removal [Manual Transaxle Type] 1. Remove the manual transaxle assembly. (Refer to Manual Transaxle System - "Manual Transaxle") 2...
