Hyundai i-30: Cylinder Block / Components and components location

Hyundai i30 (PD) 2018-2025 Service Manual / Engine Mechanical System / Cylinder Block / Components and components location

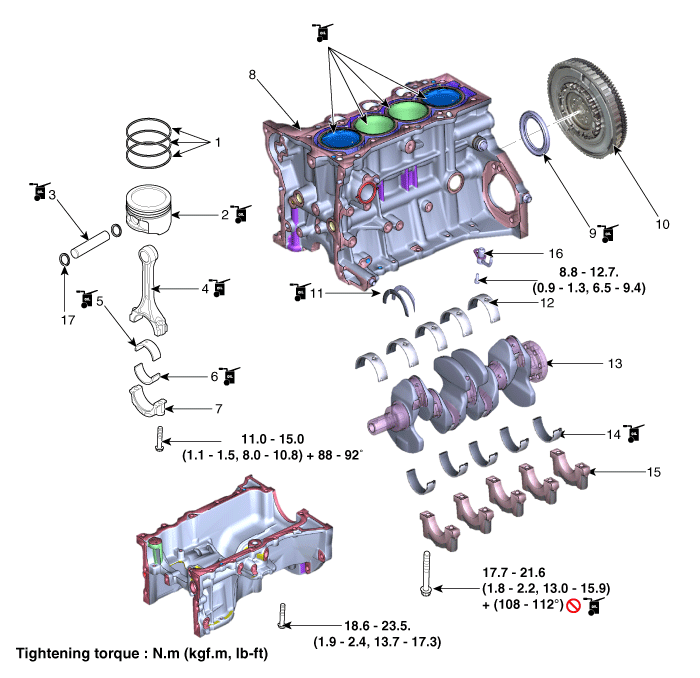

Components

1. Piston ring
2. Piston
3. Piston pin
4. Connecting rod
5. Connecting rod upper bearing
 6. Connecting rod lower bearing
7. Connecting rod bearing cap
8. Cylinder block
9. Rear oil seal
10. Flywheel
 11. Thrust bearing
12. Main bearing (Upper)
13. Crankshaft
14. Main bearing (Lower)
15. Main bearing cap
16. Oil jet
17. Snap ring

    Cylinder Block

    ..

    Fly Wheel

    Repair procedures Removal 1. Remove the dual clutch transmission assembly. (Refer to Double Clutch Transmission (DCT) System - "Double Clutch Transmission (DCT)") 2...
