Hyundai i-30: Panorama sunroof / Closing the sunroof

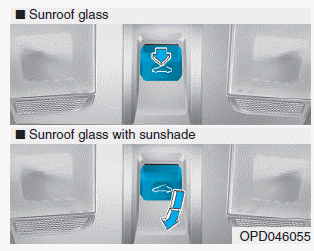

To close sunroof glass
Push the sunroof control lever forward to the first detent position.
To close sunroof glass with sunshade
Push the sunroof control lever forward to the second detent position. The sunroof glass will close then the sunshade will close automatically.
To stop the sunroof movement at any point, push the sunroof control lever either forward or backward momentarily.

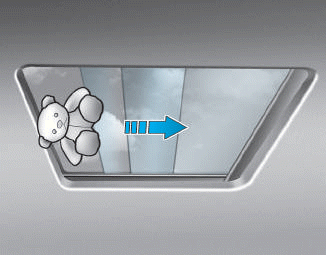

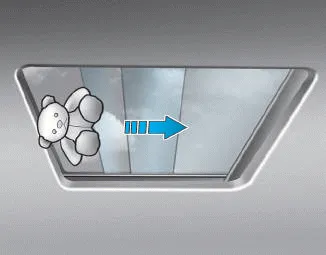

Automatic reverse
If the sunroof senses any obstacle whilst it is closing automatically, it will reverse direction then stop to allow the object to be cleared.
WARNING
Small objects that can get caught between the sunroof glass and the front glass channel may not be detected by the automatic reverse system. In this case, the sunroof glass will not detect the object and will not reverse direction.
WARNING
- In order to prevent accidental operation of the sunroof, especially by a child, do not let a child operate the sunroof.
- Do not sit on the top of the vehicle. It may cause vehicle damage.
NOTICE
- Periodically remove any dirt that may accumulate on the sunroof guide rail or between the sunroof and roof panel, which can make a noise.
- Do not try to open the sunroof when the temperature is below freezing or when the sunroof is covered with snow or ice, otherwise the motor could be damaged. In cold and wet climates, the sunroof may not work properly.
Tilting the sunroof
When the sunshade is closed
If you push the sunroof control lever
upward, the sunshade will slide open
then the sunroof glass will tilt open.
To stop the sunroof movement at any
point, push the sunroof control lever
either forward or backward momentarily...
Resetting the sunroof
The sunroof may need to be reset if
the following conditions occur:
- The battery is discharged or disconnected
or the sunroof fuse has
been replaced or disconnectedБЮ
- The sunroof control lever is not
operating correctly
To reset the sunroof, perform the following
steps:
1...
