Hyundai i-30: Steering wheel / Components and components location

Hyundai i30 (PD) 2018-2025 Service Manual / Steering System / Steering wheel / Components and components location

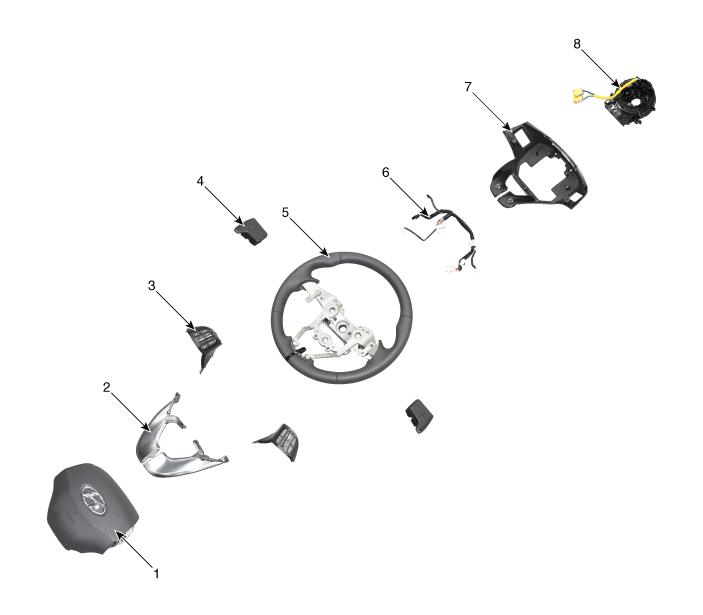

Components

1. Driver airbag module(DAB)
2. Steering upper cover
3. Remote contorl switch
4. Paddle shift switch
5. Steering wheel
6. Wiring
7. Steering lower cover
8. Clock spring

    Steering wheel

    ..

    Repair procedures

    Removal 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2...
