Components and components location

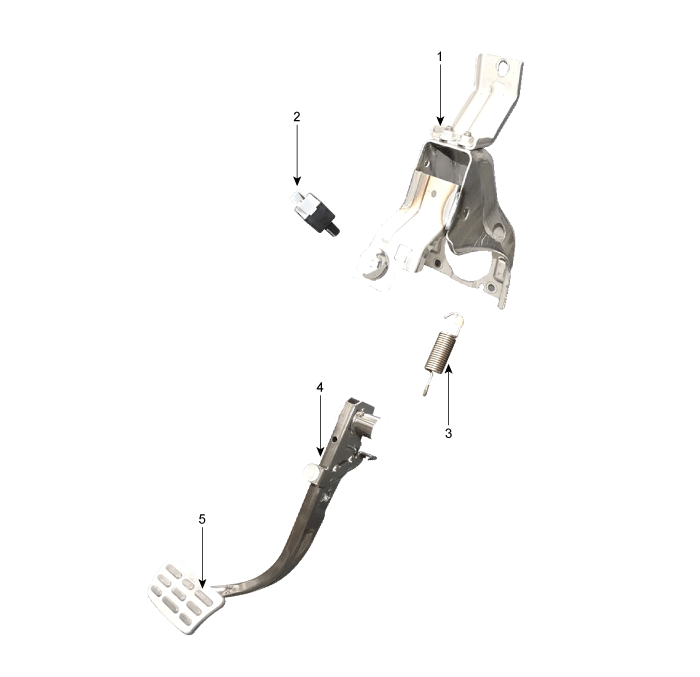

Components

1. Brake member assembly
2. Stop lamp switch
3. Return spring
4. Brake pedal arm assembly
5. Brake pedal pad

Repair procedures
Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad")
3.

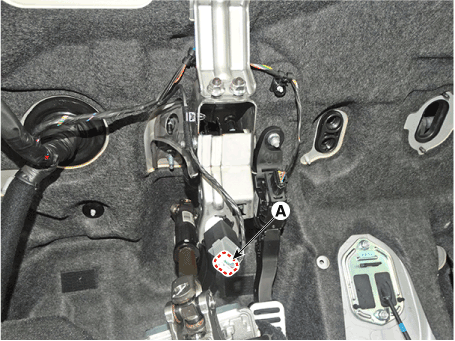

Disconnect the stop lamp switch connector (A).

4.
Remove the stop lamp switch.
(Refer to Brake System - "Stop Lamp Swtich")
5.

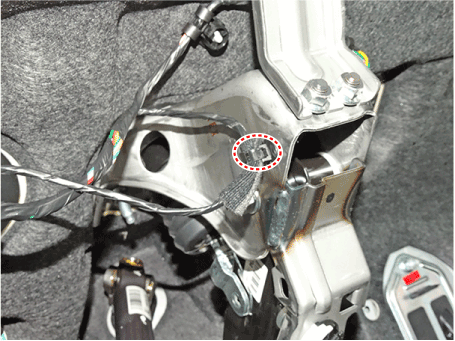

Remove the wiring fixed clip from the brake pedal member.

6.

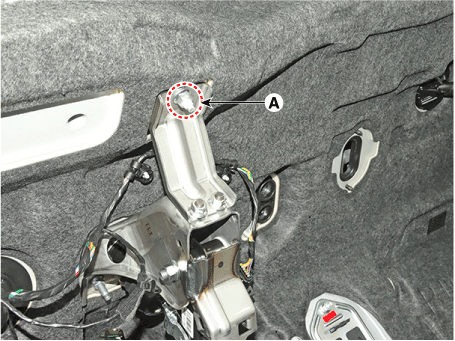

Remove the bracket mounting nut (A).
Tightening torque :
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

7.

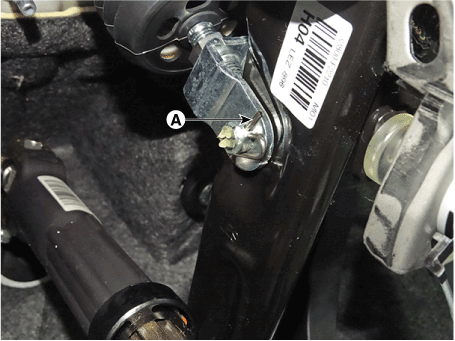

Remove the snap pin (A).

8.

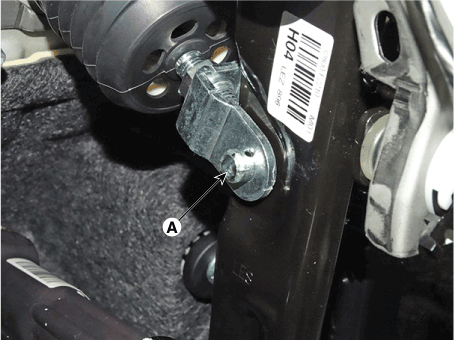

Remove the clevis pin (A).

9.

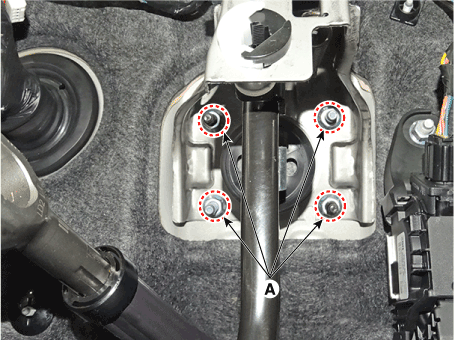

Remove the mounting nuts (A).
Tightening torque :
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

10.
To install, reverse the removal procedure.
Inspection
1.
Check the brake pedal for bending or twisting.
2.
Check the brake pedal return spring for damage.
3.
Check the stop lamp switch.
