Hyundai i-30: Windscreen defrosting and defogging / Automatic climate control
system

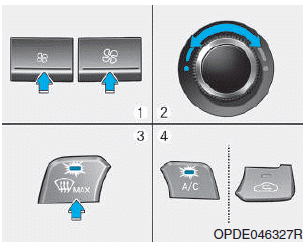

To defog inside windscreen
1. Select the desired fan speed.
2. Select the desired temperature.
3. Press the defroster button ().
4. The air-conditioning will turn on
according to the detected ambient
temperature, outside (fresh) air
position and higher fan speed will
be selected automatically.
If the air-conditioning, outside (fresh)
air position and higher fan speed are
not selected automatically, adjust the
corresponding button or knob manually.
If the position is selected,
lower
fan speed is controlled to higher fan
speed.

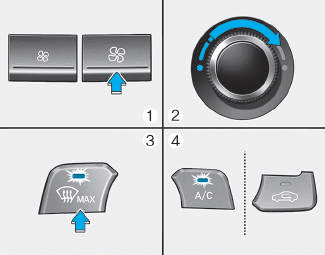

To defrost outside windscreen
1. Set fan speed to the highest position.
2. Set temperature to the extreme
hot (HI) position.
3. Press the defroster button ().
4. The air-conditioning will turn on
according to the detected ambient
temperature and outside (fresh)
air position will be selected automatically.
If the position is selected,
lower
fan speed is controlled to higher fan
speed.
To defog inside windscreen
1. Select any fan speed except “0”
position.
2. Select the desired temperature.
3. Select the or
position.
4...
Auto defogging reduces the possibility
of fogging up the inside of the
windscreen by automatically sensing
the moisture on inside the windscreen...
