Hyundai i-30: Fuel Delivery System / Fuel Filter

Hyundai i30 (PD) 2018-2024 Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Filter

Repair procedures
Removal
1.
Remove the fuel pump.
(Refer to Fuel Delivery System - "Fuel Pump")
2.

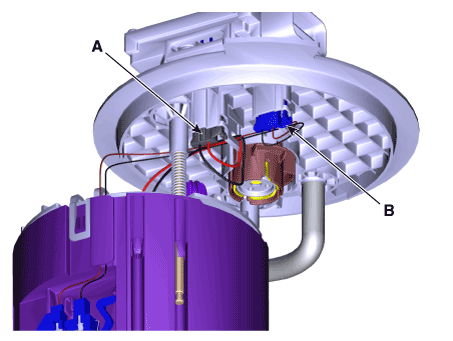

Disconnect the fuel pump motor connector (A) and the fuel sender connector (B).

3.

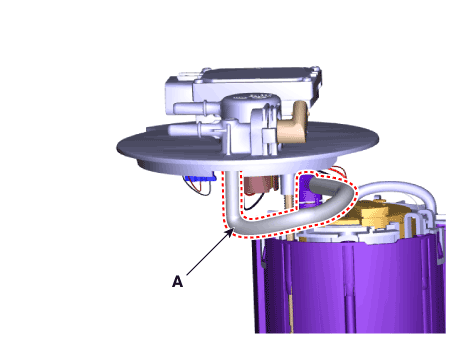

Disconnect the fuel feed quick connector hose (A).

4.

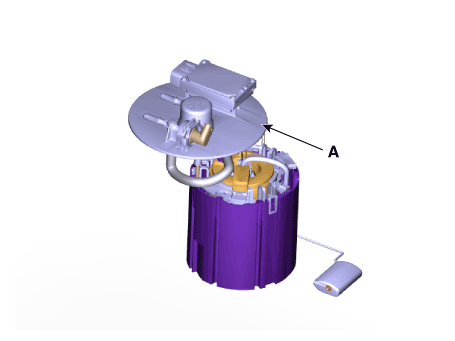

Remove the head assembly (A) from the reservoir cup.

5.

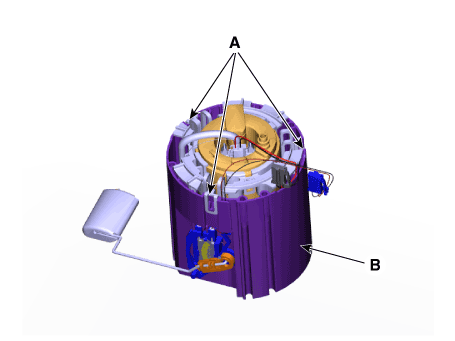

Remove the reservoir-cup (B) after releasing the fixing hooks (A).

6.
Disconnect the ground cable (A).
7.

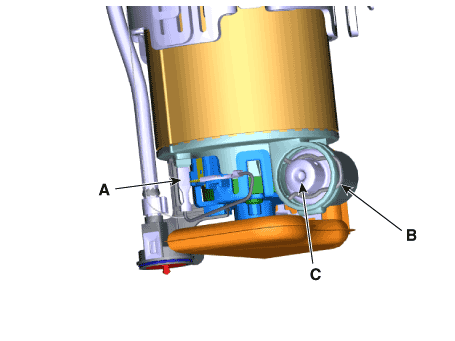

Remove the snap pin (B), and then remove the fuel pressure regulator (C).

8.
Remove the pre-filter (B) after releasing the fixing hooks (A).
9.
Remove the fuel pump motor (C).
10.

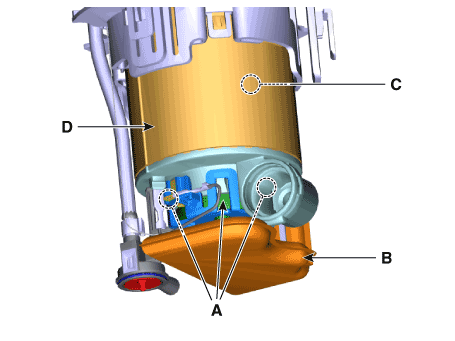

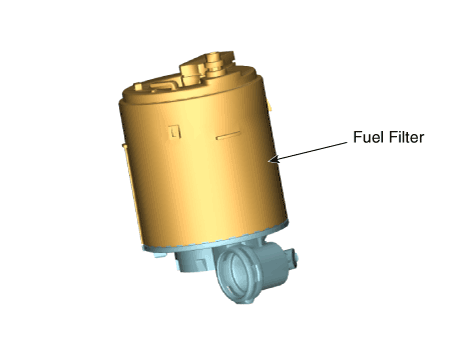

Rmove the fuel filter (D).

Installation
1.
Install in the reverse order of removal.
