Hyundai i-30: Immobilizer System / Antenna Coil
Hyundai i30 (PD) 2018-2024 Service Manual / Body Electrical System / Immobilizer System / Antenna Coil
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the steering column shroud panel.
(Refer to Body - "Steering Column Shroud Panel")
|
| 3. |

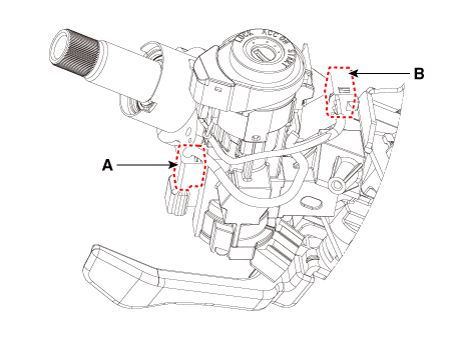

Disconnect the 6P connector (A) of the coil antenna and then remove
the antenna coil (B) after loosening a screw.
|
| Installation |
| 1. |
Install the coil antenna and connect the 6P connector.
|
| 2. |
Install the steering column shroud panel.
|
| 3. |
Connect the negative (-) battery terminal.
|
