Hyundai i-30: Cylinder Head Assembly / Vacuum Pump

Hyundai i30 (PD) 2018-2025 Service Manual / Engine Mechanical System / Cylinder Head Assembly / Vacuum Pump

Repair procedures
Removal And Installation
1.
Disconnect the battery negative terminal.
2.
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "Engine Cover")
3.
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "Air Cleaner")
4.

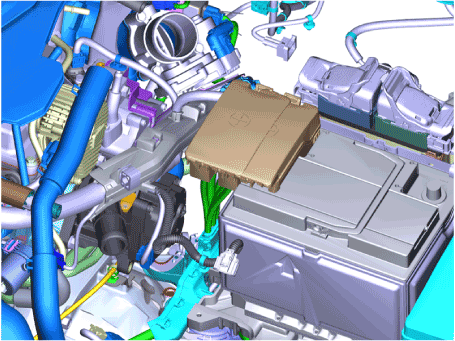

Disconnect the wiring connectors and harness clamps and remove the connector brackets around the vacuum pump.

5.

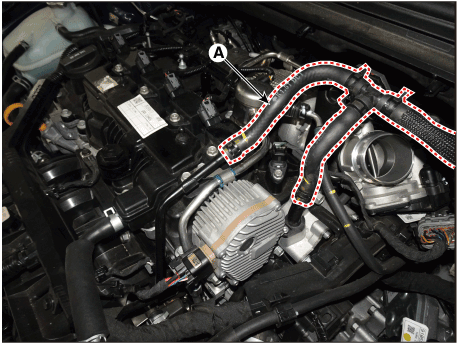

Disconnect the brake booster vacuum hose.

6.

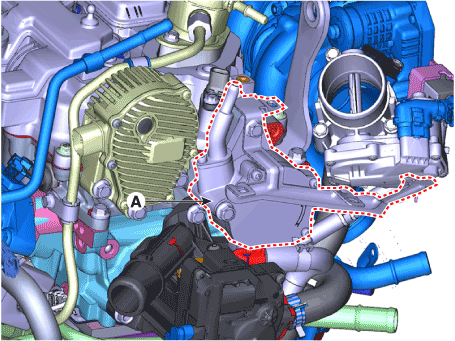

Remove the vacuum pump (A).
Tightening torque :
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

7.
Install in the reverse order of removal.
