Hyundai i-30: Parking Distance Warning (PDW) / Ultrasonic Sensor

Hyundai i30 (PD) 2018-2025 Service Manual / Advanced Driver Assistance System (ADAS) / Parking Distance Warning (PDW) / Ultrasonic Sensor

Schematic diagrams

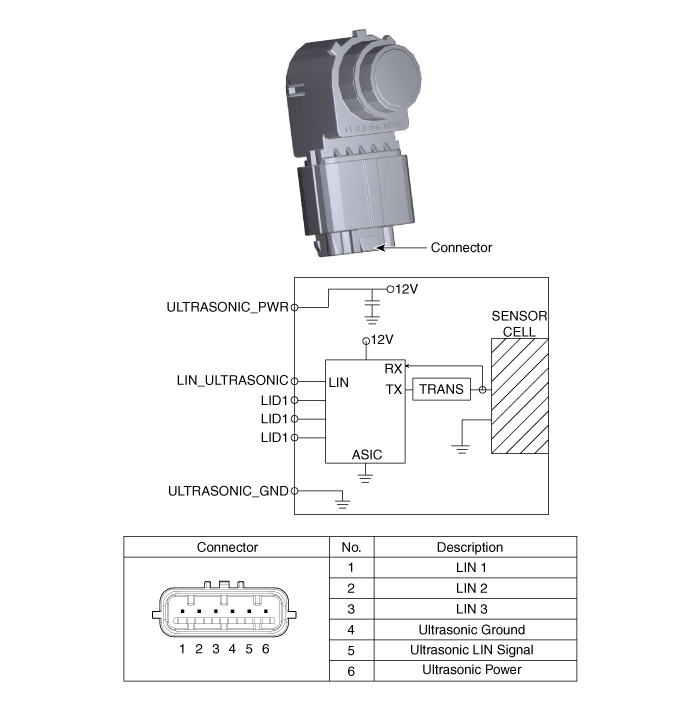

Circuit Diagram

Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front / rear bumper cover.
(Refer to Body - "Front Bumper Cover")
(Refer to Body - "Rear Bumper Cover")
3.

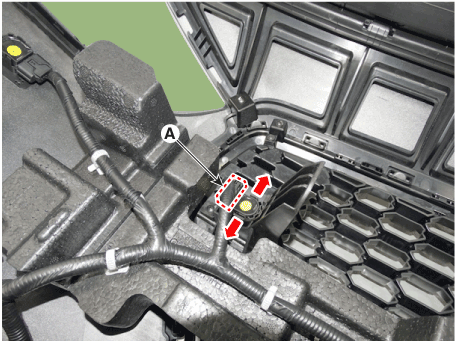

Disconnect the sensor connector (A).

4.

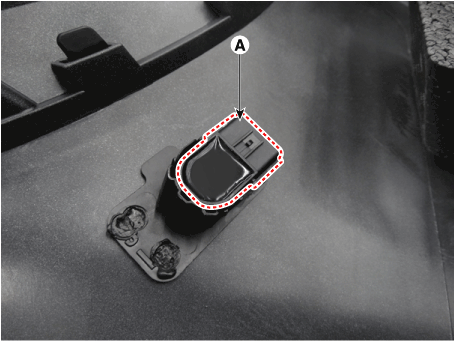

Remove the front left/right, rear left/right/center sensor (A).

5.

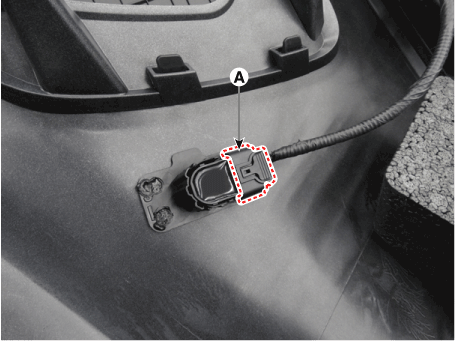

Remove the rear center sensor (A).

Installation
1.
Install the rear ultra sensor after connecting the connector.
2.
Install the bumper cover.
3.
Connect the negative (-) battery terminal.

    Description and operation

    Description • PDW consists of 8 sensors (front : 4 units, rear : 4 units) that are used to detect obstacles and transmit the result in three separate warning levels, the first, second and third to BCM via LIN communication...
