Schematic Diagram

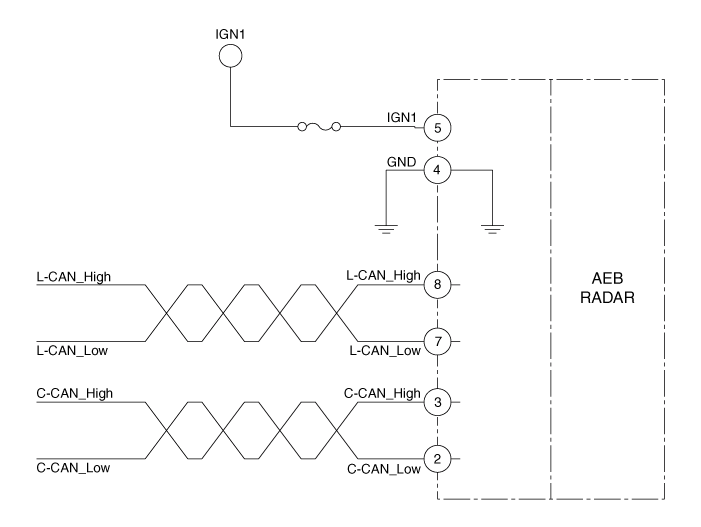

[AEB Radar]

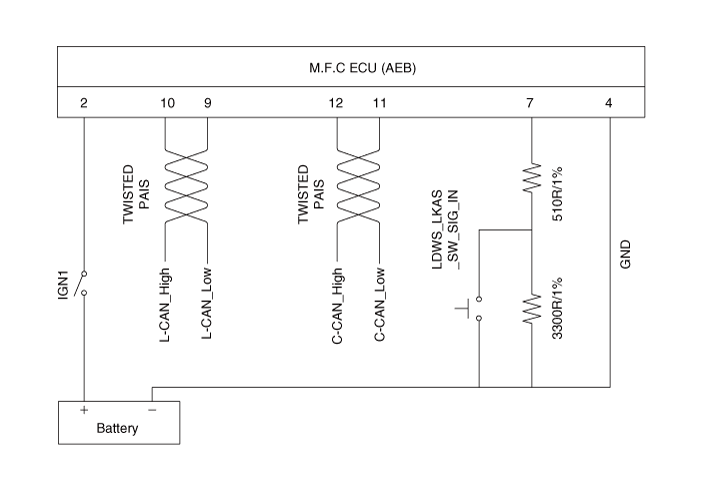

[MFC Camera Type]

Terminal Function

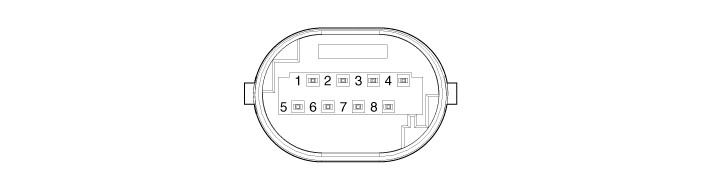

[AEB Radar]

No
Function
1
-
2
C-CAN Low
3
C-CAN High
4
GND
5
IGN_1
6
-
7
L-CAN Low
8
L-CAN High

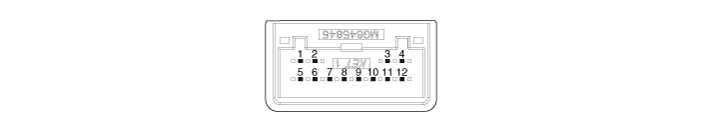

[MFC Camera Type]

No
Function
1
-
2
IGN_1
3
-
4
Ground
5
-
6
-
7
Camera switch
8
-
9
L-CAN Low
10
L-CAN High
11
C-CAN Low
12
C-CAN High
