Hyundai i-30: Lighting System / Rheostat

Hyundai i30 (PD) 2018-2025 Service Manual / Body Electrical System / Lighting System / Rheostat

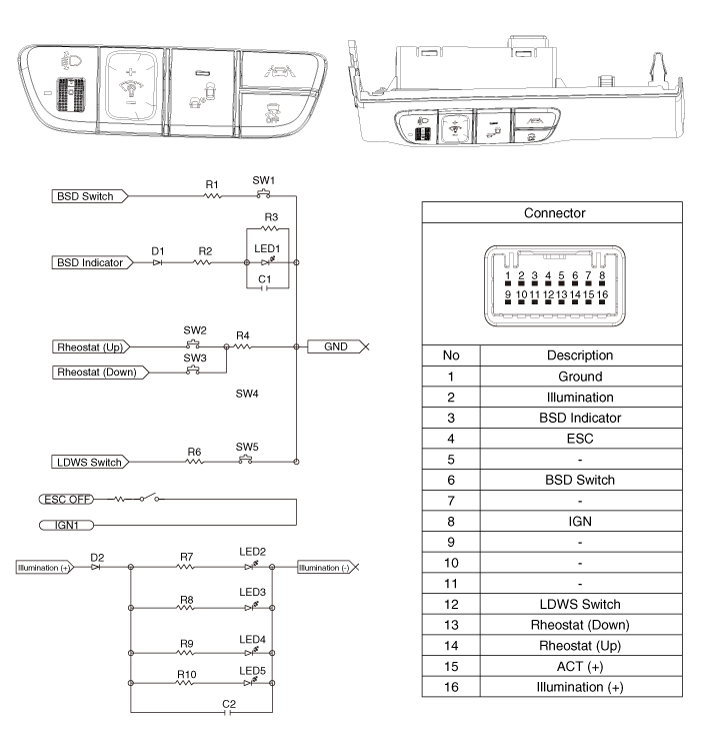

Components and components location
Components

Repair procedures
Inspection
1.
Disconnect the negative (-) battery terminal.
2.

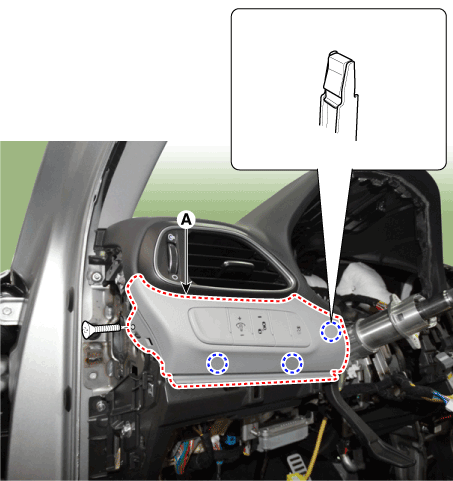

Remove the lower crash pad switch assembly (A) after disengaging the retaining clips.

3.

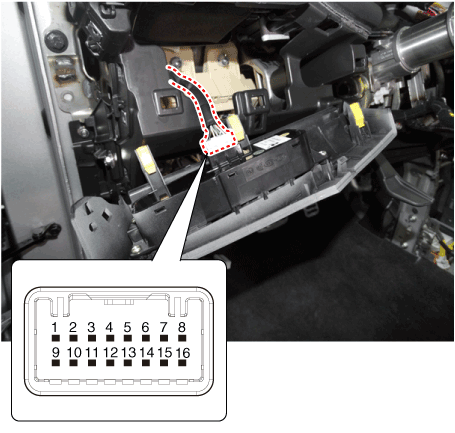

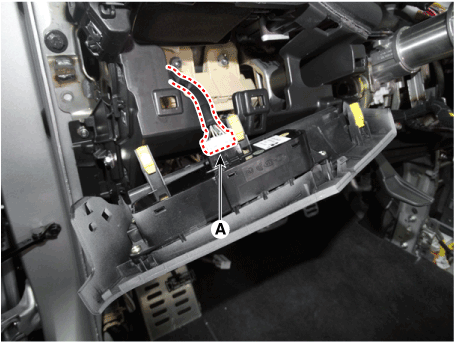

Disconnect the rheostat switch connector (A).

4.

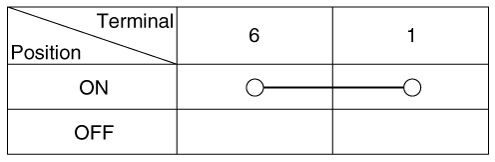

Operate the BSD switch, then check for continuity between terminals of BSD switch connector.
