Hyundai i-30: Seat Electrical / Power Seat Motor

Hyundai i30 (PD) 2018-2024 Service Manual / Body Electrical System / Seat Electrical / Power Seat Motor

Components and components location

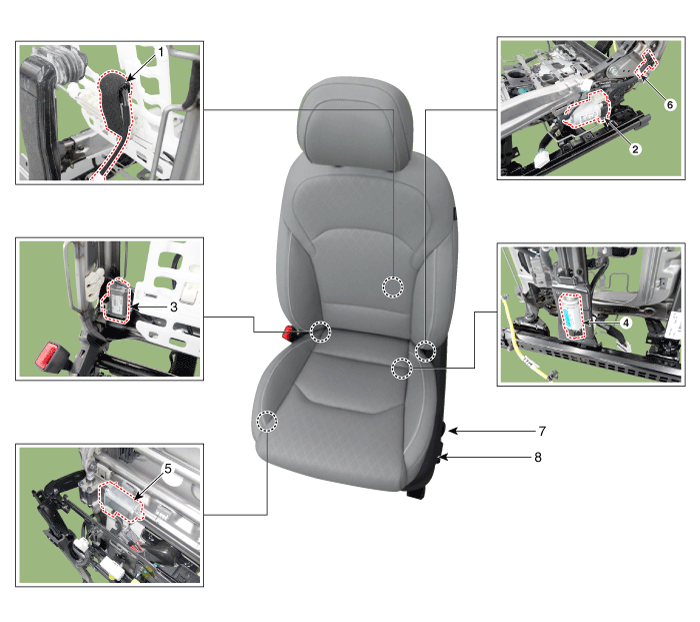

Component Location

1. Lumber support motor (Horizontal)
2. Rear height motor
3. Reclining motor
4. Slide motor

5. Front tilt motor
6. Reclining limit switch
7. Lumber support switch
8. Seat switch

Description and operation

Description

Power seat motor is driven by a motor in the following.

1.	Slide motor

2.	Front tilt motor

3.	Rear Height motor

4.	Reclining motor

Repair procedures

Inspection

Power Seat Motor

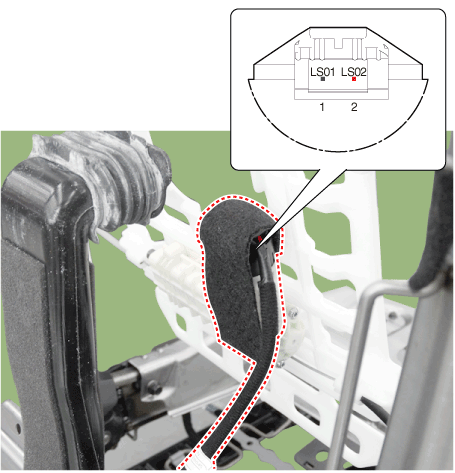

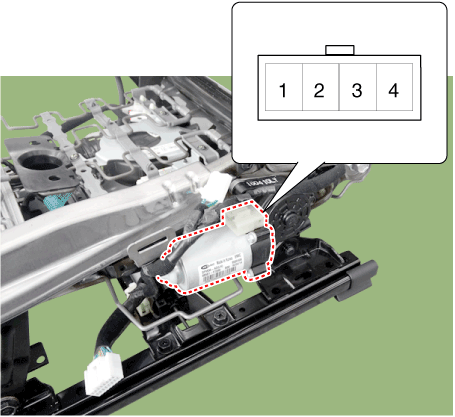

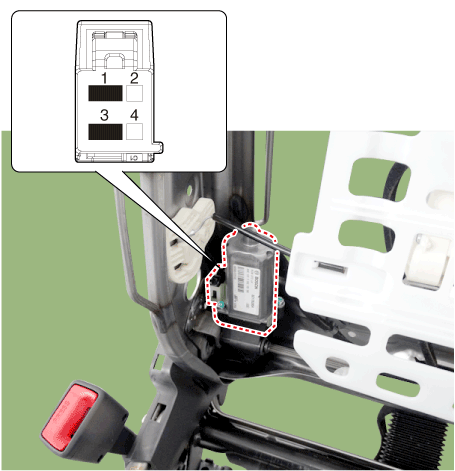

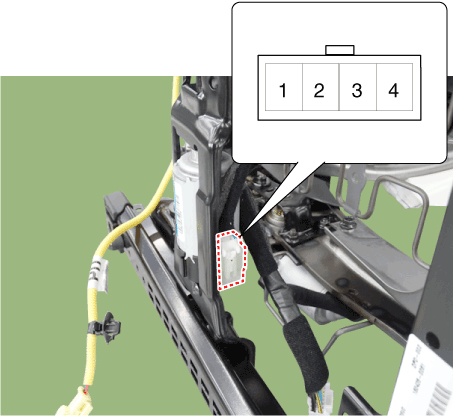

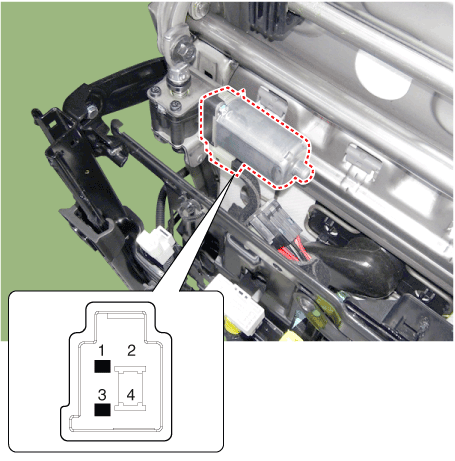

1.	Disconnect the connectors for each motor. [Slide motor] [Rear height motor] [Front tilt motor] [Reclining motor] [Lumber support motor]

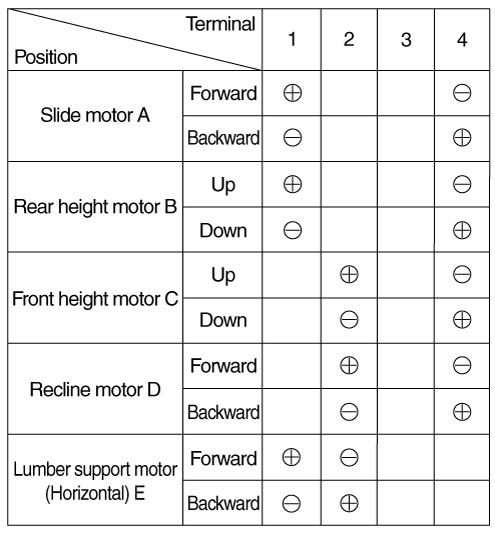

2.	When the battery power is supplied to the motor connector, check the motor for smooth operation.

3.	Reverse the connections and check that the motor turns in reverse.

4.	If the motor runs abnormally, replace it. [Driver / Assist]

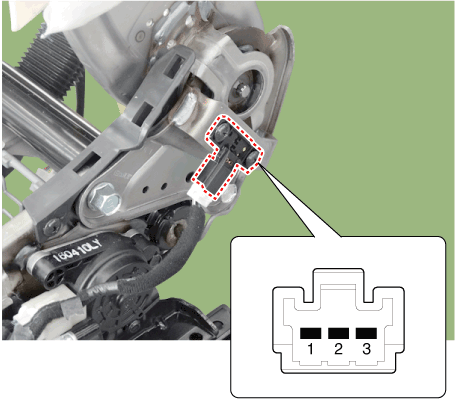

Reclining Motor Limit Switch

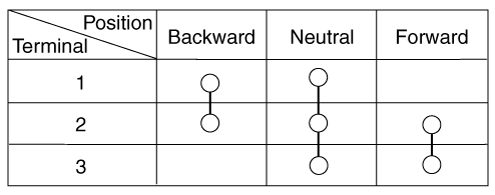

1.	Disconnect the limit switch and operate the limit switch.

2.	Check for continuity between the terminals.

3.	Make sure that the seat operation is normal in the reverse after the maximum operation.

4.	If there is an abnormality, replace the limit switch.

Remove

Front Seat

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front seat assembly. (Refer to Body - "Front Seat Assembly")

Power Seat Control Switch

Schematic diagrams Circuit Diagram [Driver power seat switch] Repair procedures Inspection Seat Control Switch 1...
