Hyundai i-30: Windshield Wiper/Washer / Head Lamp Washer Motor

Hyundai i30 (PD) 2018-2025 Service Manual / Body Electrical System / Windshield Wiper/Washer / Head Lamp Washer Motor

Repair procedures
Removal
Head Lamp Washer Motor

•
When servicing the washer pump, be careful not to damage the washer pump seal.
•
Do not operate the washer pump before filling the washer reservoir.
Failure to do so could result in premature pump failure.
1.
Disconnect the negative (-) battery terminal.
2.
Remove the right wheel house cover.
3.

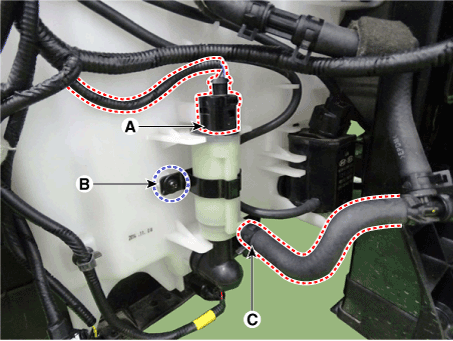

Disconnect the head lamp washer motor connector (A).
4.
Remove the head lamp washer motor screw (B).
5.
Remove the head lamp washer hose (C).
Head Lamp Washer Actuator
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front bumper cover.
(Refer to Body - "Front Bumper Cover")
3.

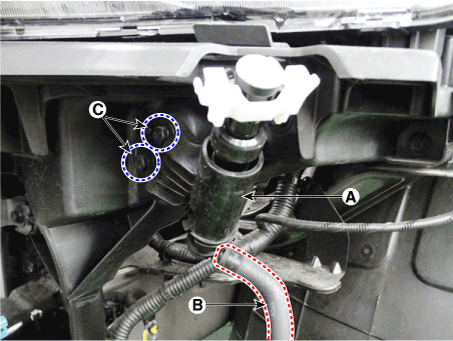

Remove the head lamp washer actuator (A) after loosening the mounting bolts (C) and remove the hose (B).
Installation
Head Lamp Washer Motor
1.
Reassemble the washer reservoir.

•
Before installing the pump motor, check the filter for foreign material or contamination. if necessary, clean the filter into the pump motor.
2.
Install the washer reservoir.
3.
Connect the washer motor connector and washer hose.
4.
Reassemble the right wheel house cover.
Head Lamp Washer Actuator
1.
Install the head lamp actuator and hose.
2.
Install the front bumper cover.
3.
Connet the negative (-) battery terminal.
