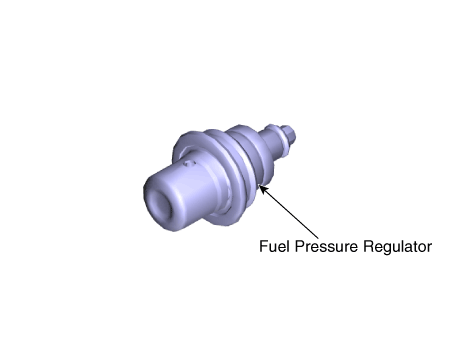

Hyundai i-30: Fuel Delivery System / Fuel Pressure Regulator
Hyundai i30 (PD) 2018-2025 Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Pressure Regulator
Repair procedures
| Removal |
| 1. |
Remove the fuel pump.
(Refer to Fuel Delivery System - "Fuel Pump")
|
| 2. |

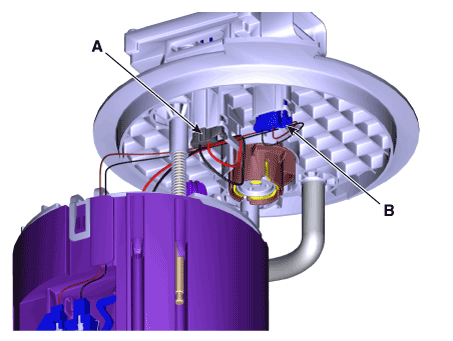

Disconnect the fuel pump motor connector (A) and the fuel sender connector
(B).
|
| 3. |

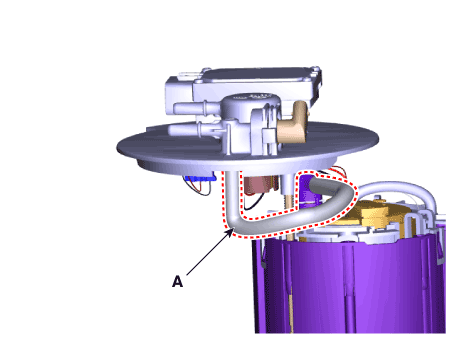

Disconnect the fuel feed quick connector hose (A).
|
| 4. |

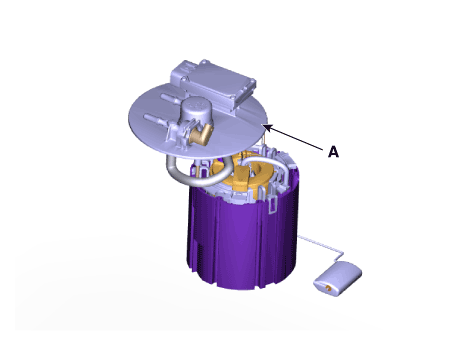

Remove the head assembly (A) from the reservoir cup.
|
| 5. |

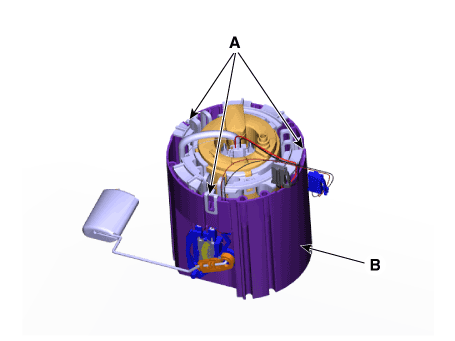

Remove the reservoir-cup (B) after releasing the fixing hooks (A).
|
| 6. |

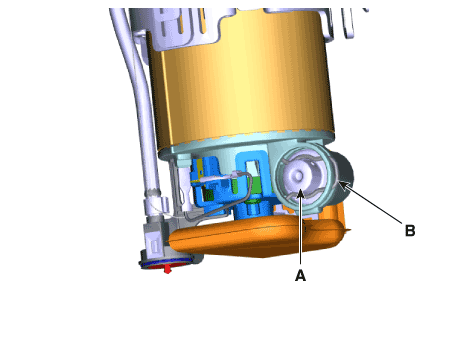

Remove the snap pin (B), and then remove the fuel pressure regulator
(A).
|
| Installation |
| 1. |
Install in the reverse order of removal.
|
Fuel Sender
Repair procedures
Removal
1.
Remove the fuel pump.
(Refer to Fuel Delivery System - "Fuel Pump")
2...
Fuel Pump Control Module (FPCM)
Description and operation
Description
The fuel pump control module (FPCM) is installed on the right side of the fuel
tank and controls the DC motor mounted inside the low pressure fuel pump...
